Getting Started
Welcome to System Initiative! This tutorial will teach you how to use System Initiative to model your infrastructure. We will be deploying a single free-tier EC2 instance in AWS, and cleaning it up. There should be no cost to you.
To follow along, you'll need three things:
An AWS account that allows you to create free-tier resources, such as EC2 instances.
Your System Initiative workspace open in another window.
Your AWS account must have a
Default VPC to complete the quick start guide. Most accounts do!
Keyboard Controls

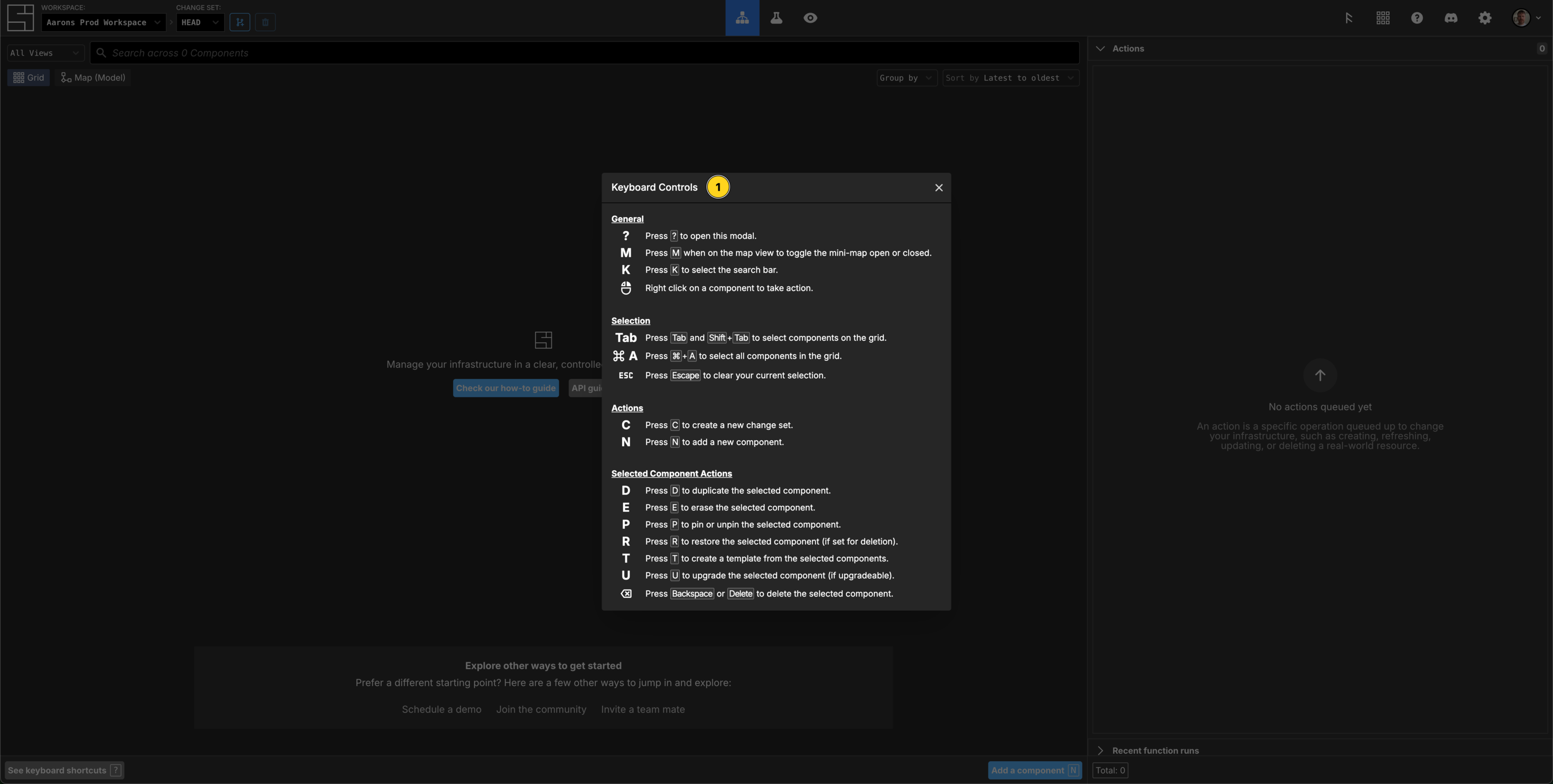

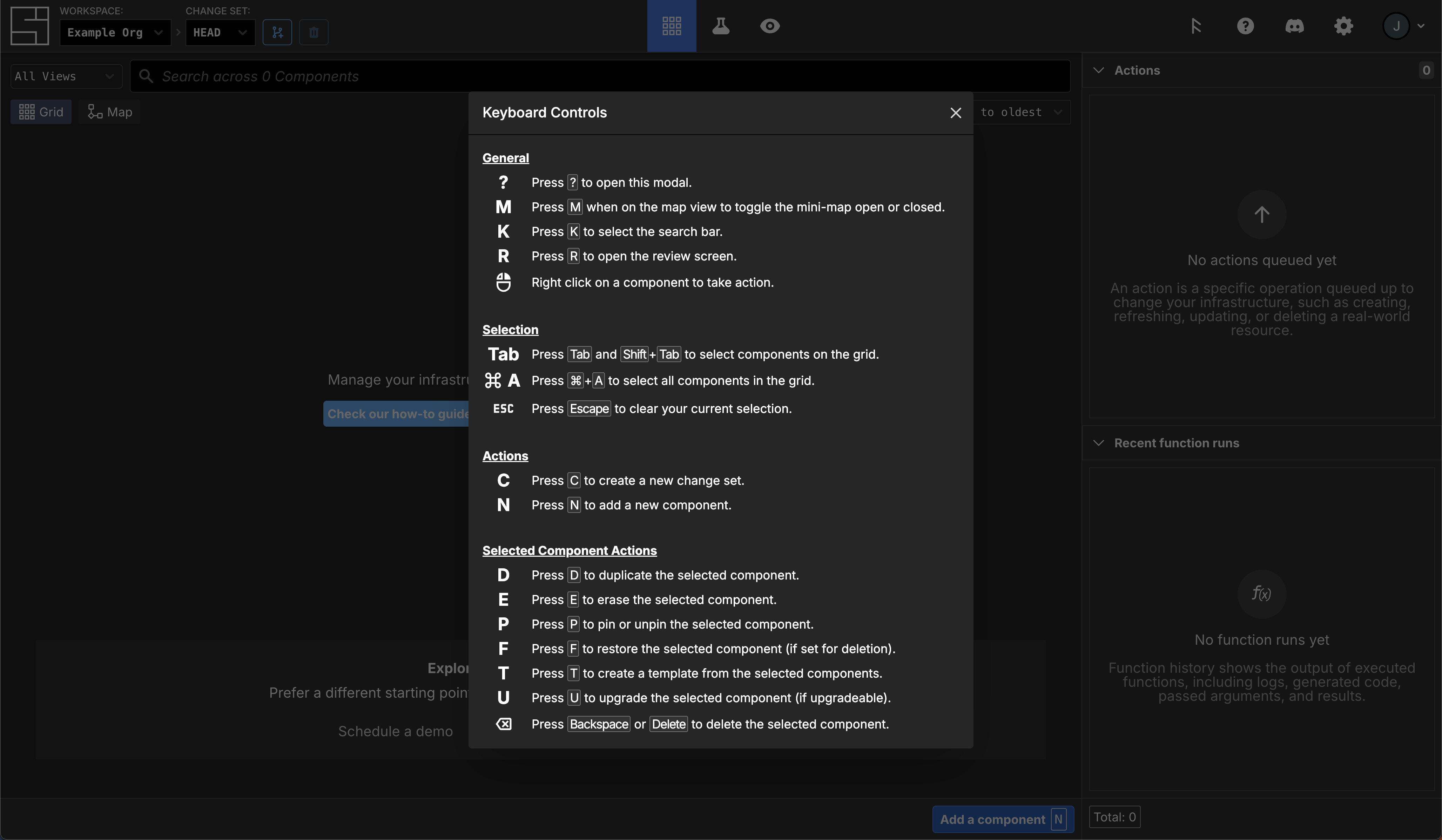

Press the ? key to open and view the Keyboard Controls. Press Esc to close.
Creating a Change Set

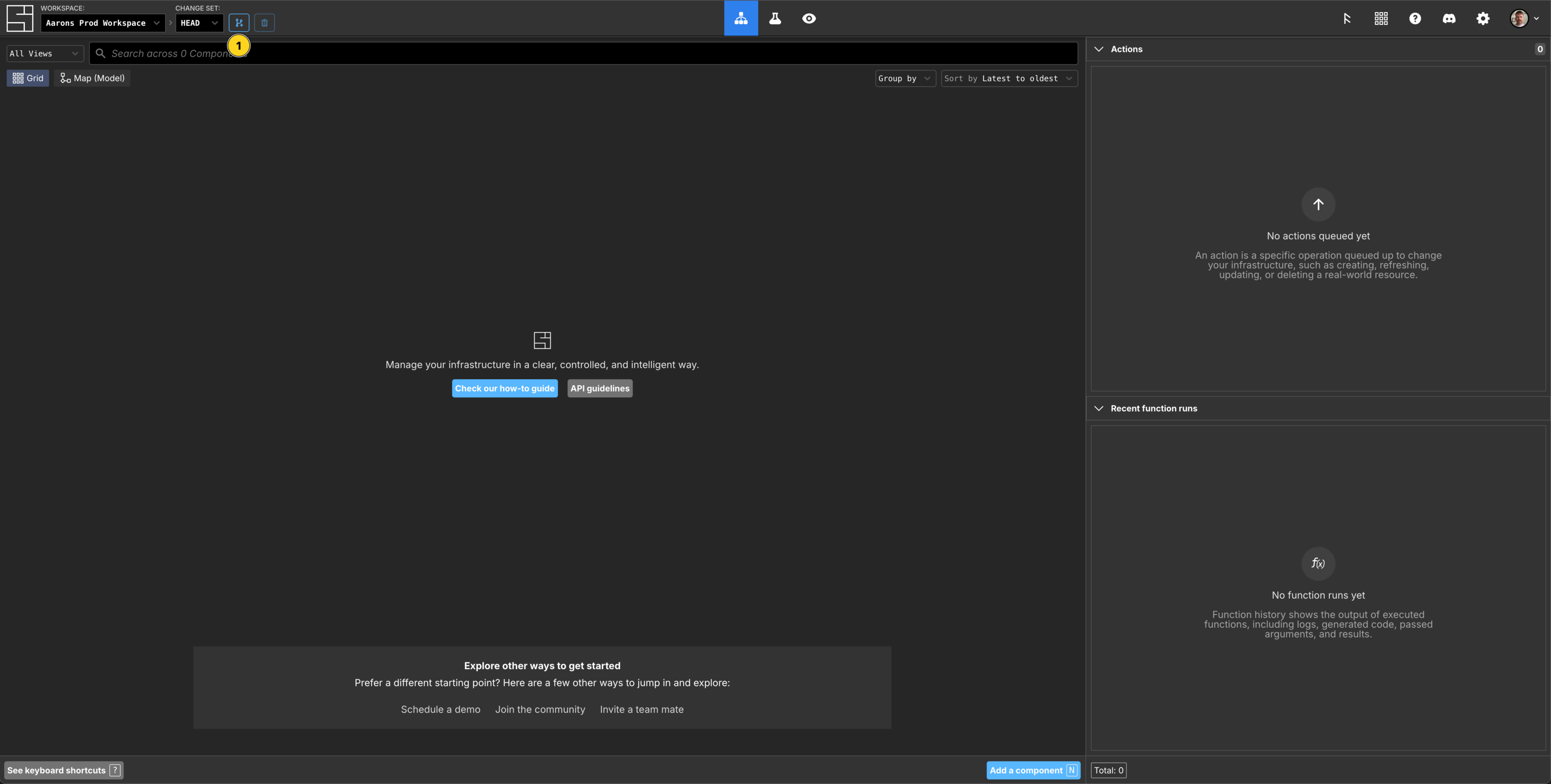

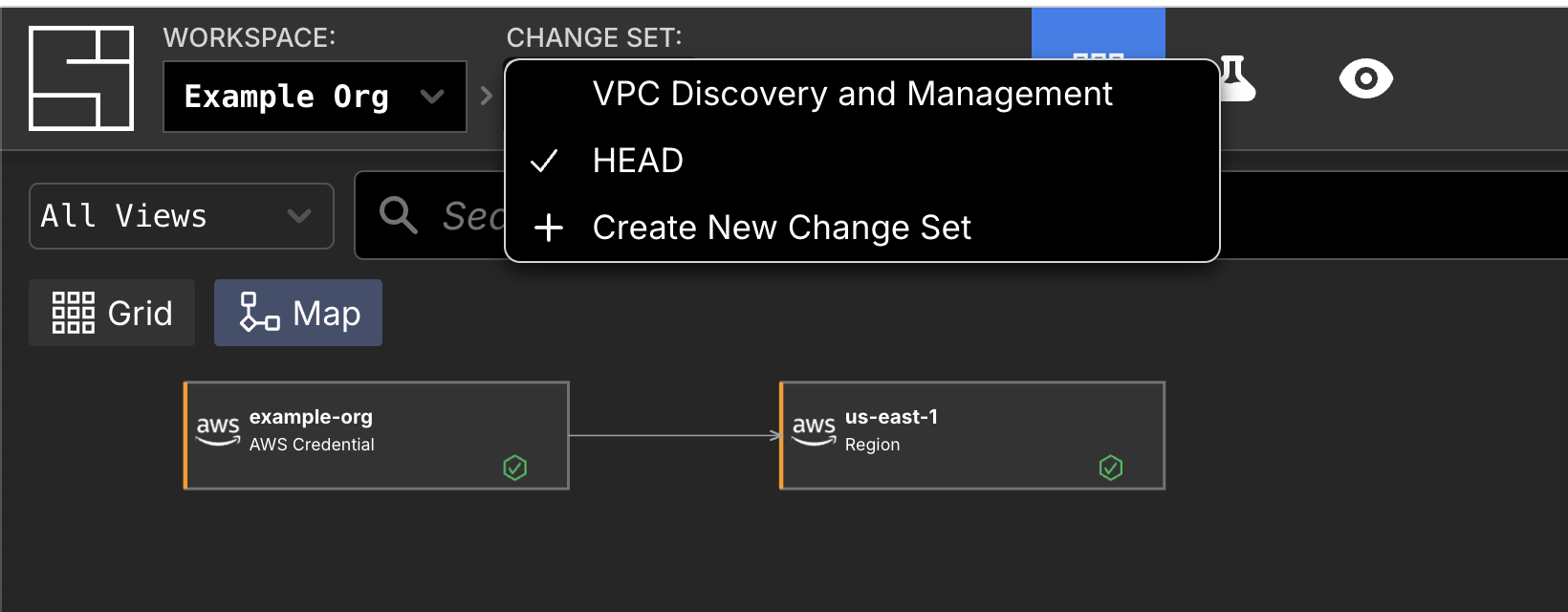

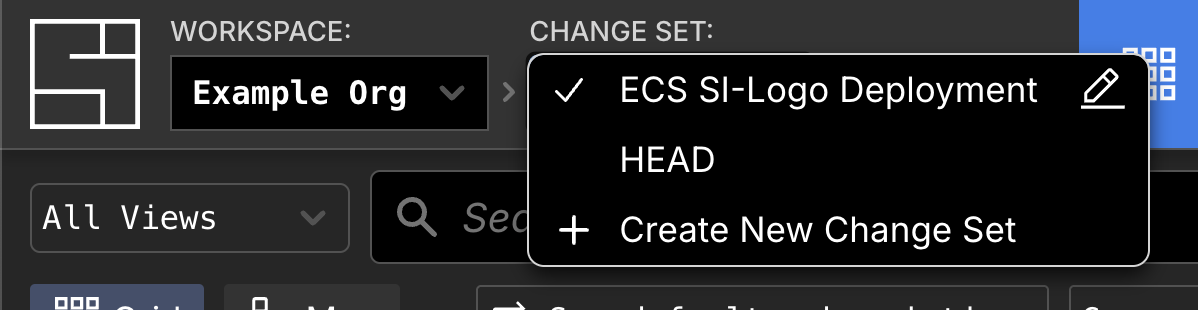

In your Workspace click the Create Change Set button.
Name your new Change Set Getting started, and click the Create change set button.

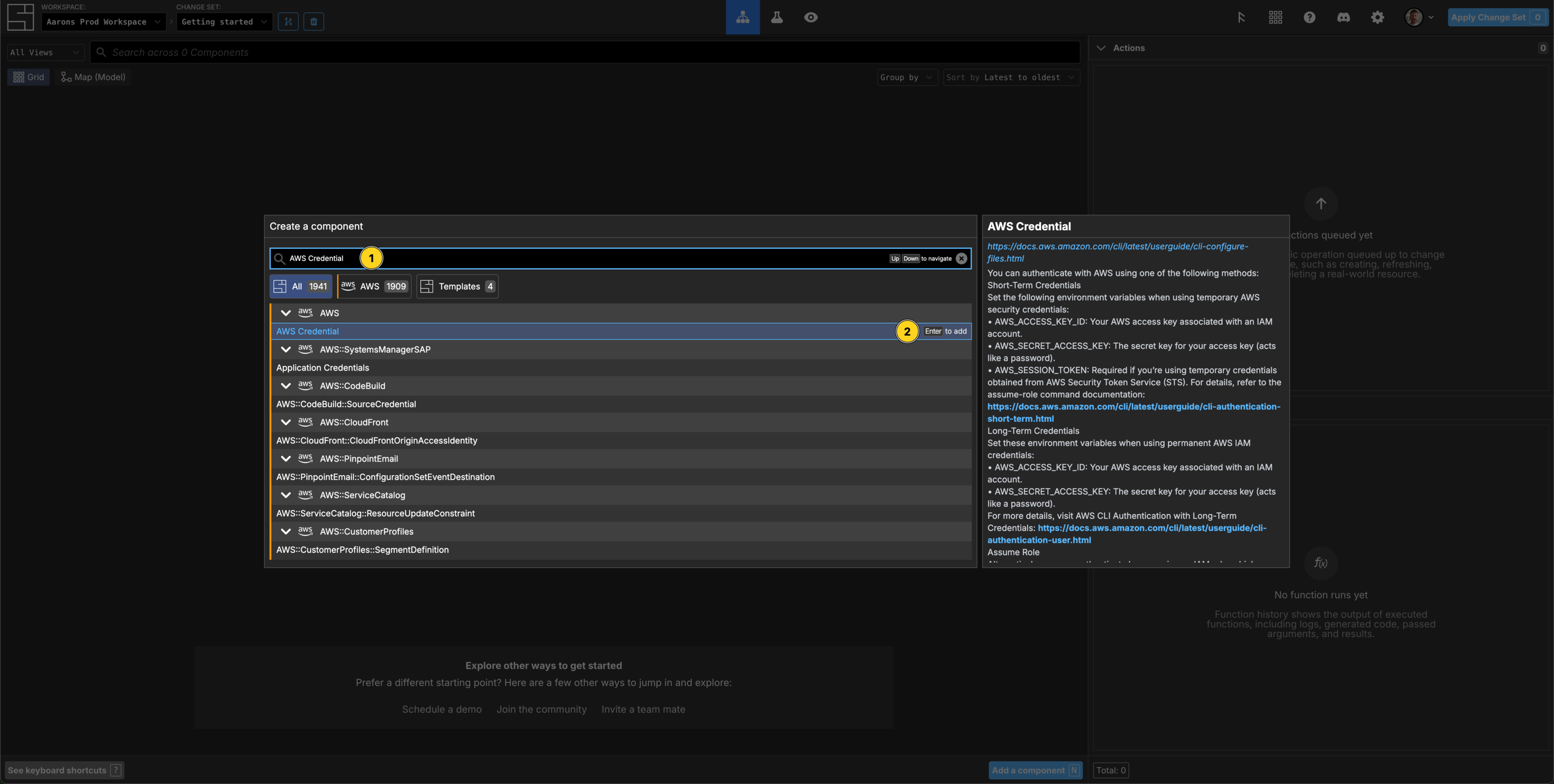

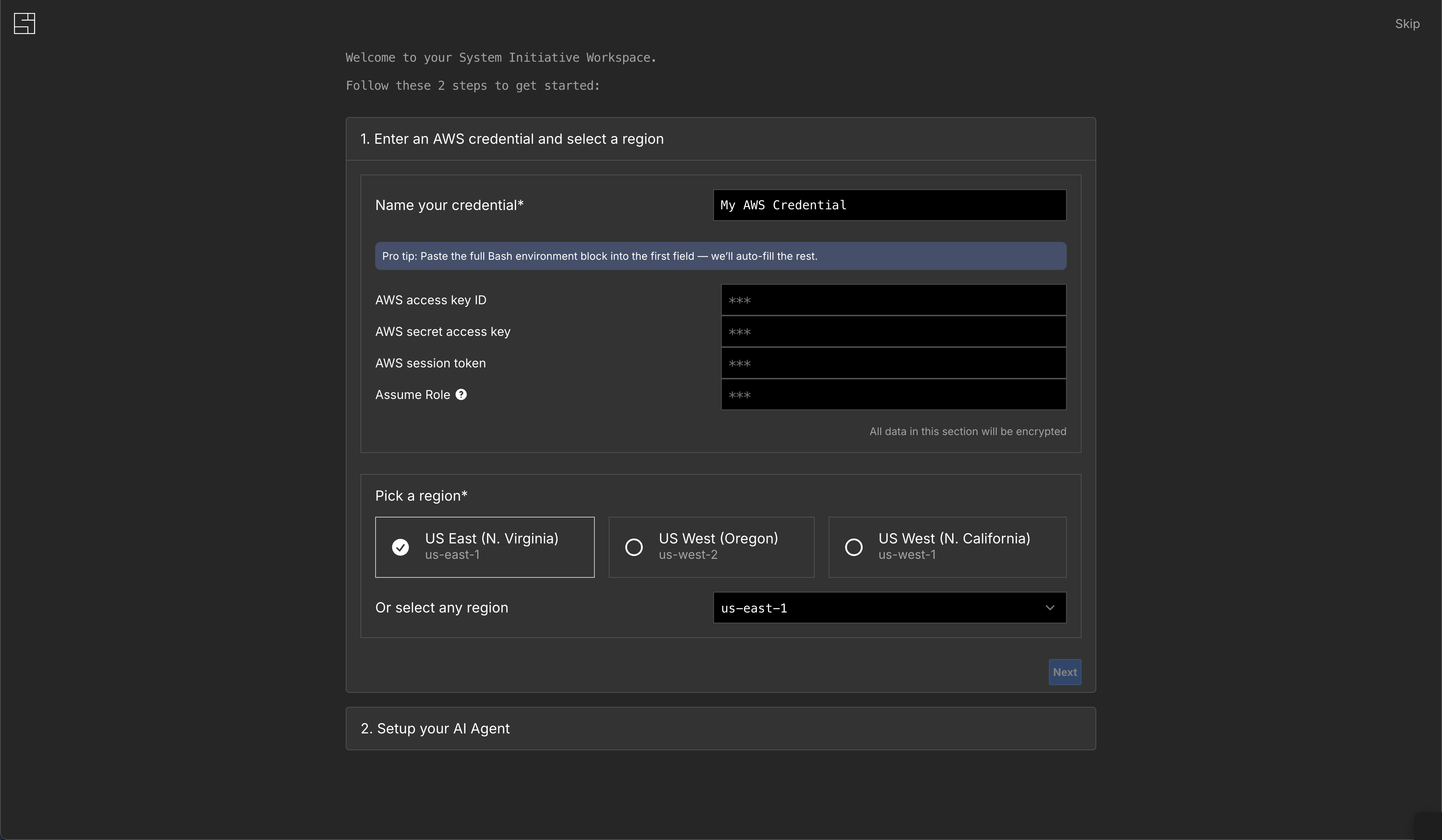

Add an AWS Credential Component
Press N or Click the Add a component button, then in the search bar type AWS Credential, select the Component and press Enter. This creates a new AWS CredentialComponent.
Configuring your AWS Credential Component
After creating your AWS Credential Component, you are navigated to the Component details screen. The Attributes panel on the left will show the credentials properties. It will have a default name like si-1234.
Change the name to AWS Credential. Pressing enter will update the Component with your new name.

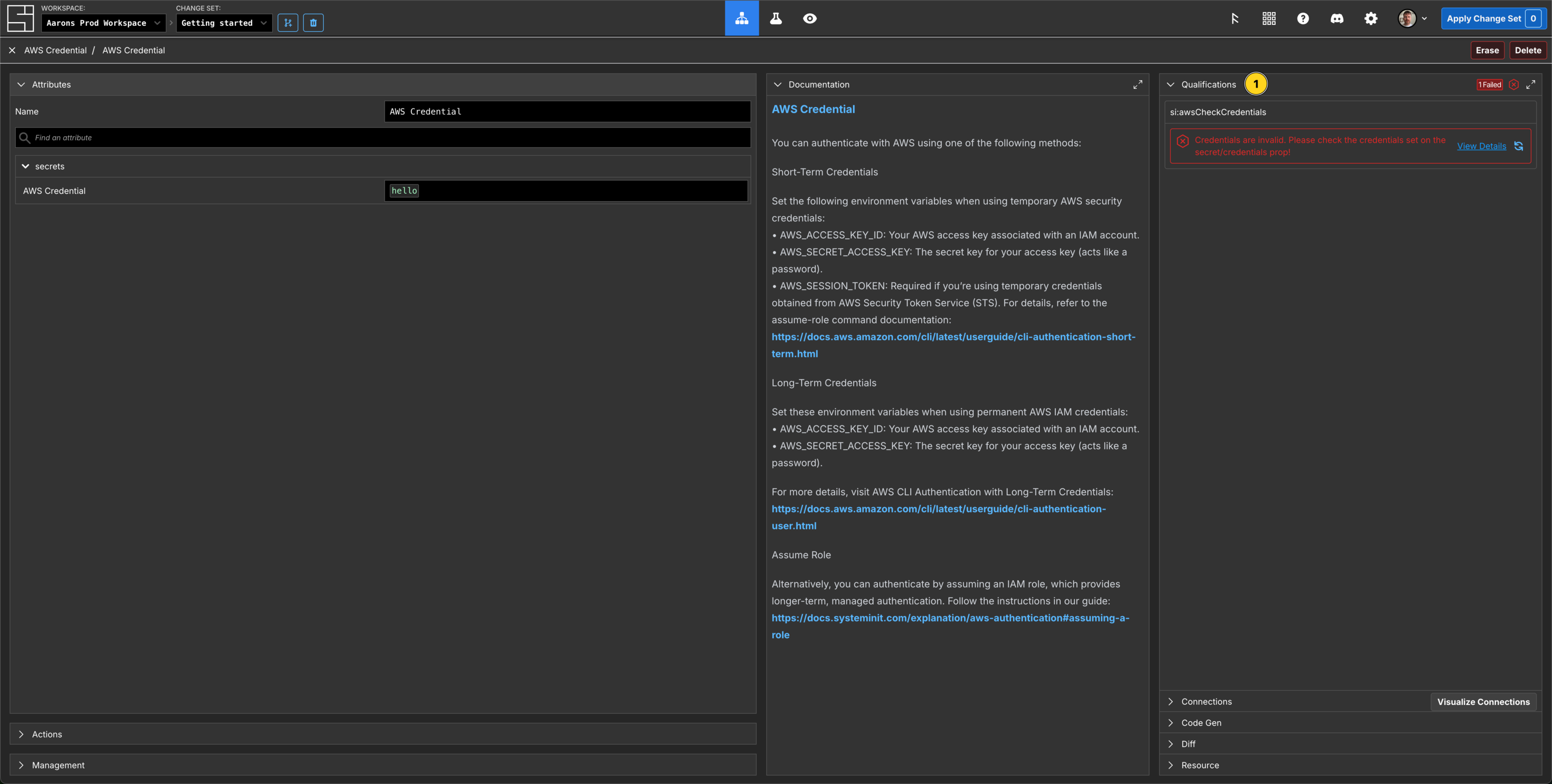

Look to the top right of the screen to Qualifications, notice that this currently says 1 Failed, open this section to see details of the failed Qualification.
This Qualification is telling you that your AWS Credentials are invalid - so lets add some valid credentials. Best practice here is to name your Secret after the AWS account you are using, for example apps-prod, or the service you are using the credentials to manage.

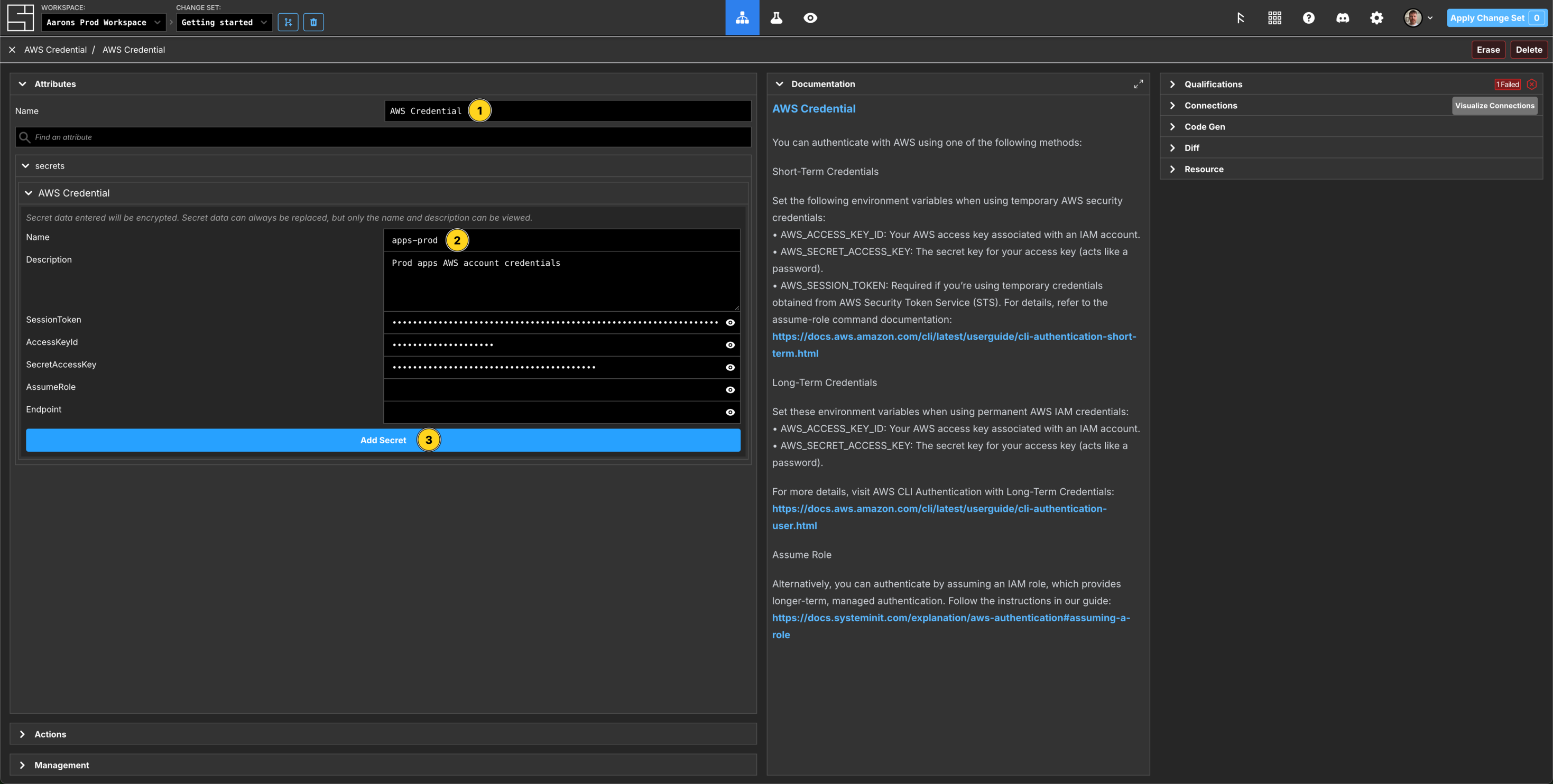

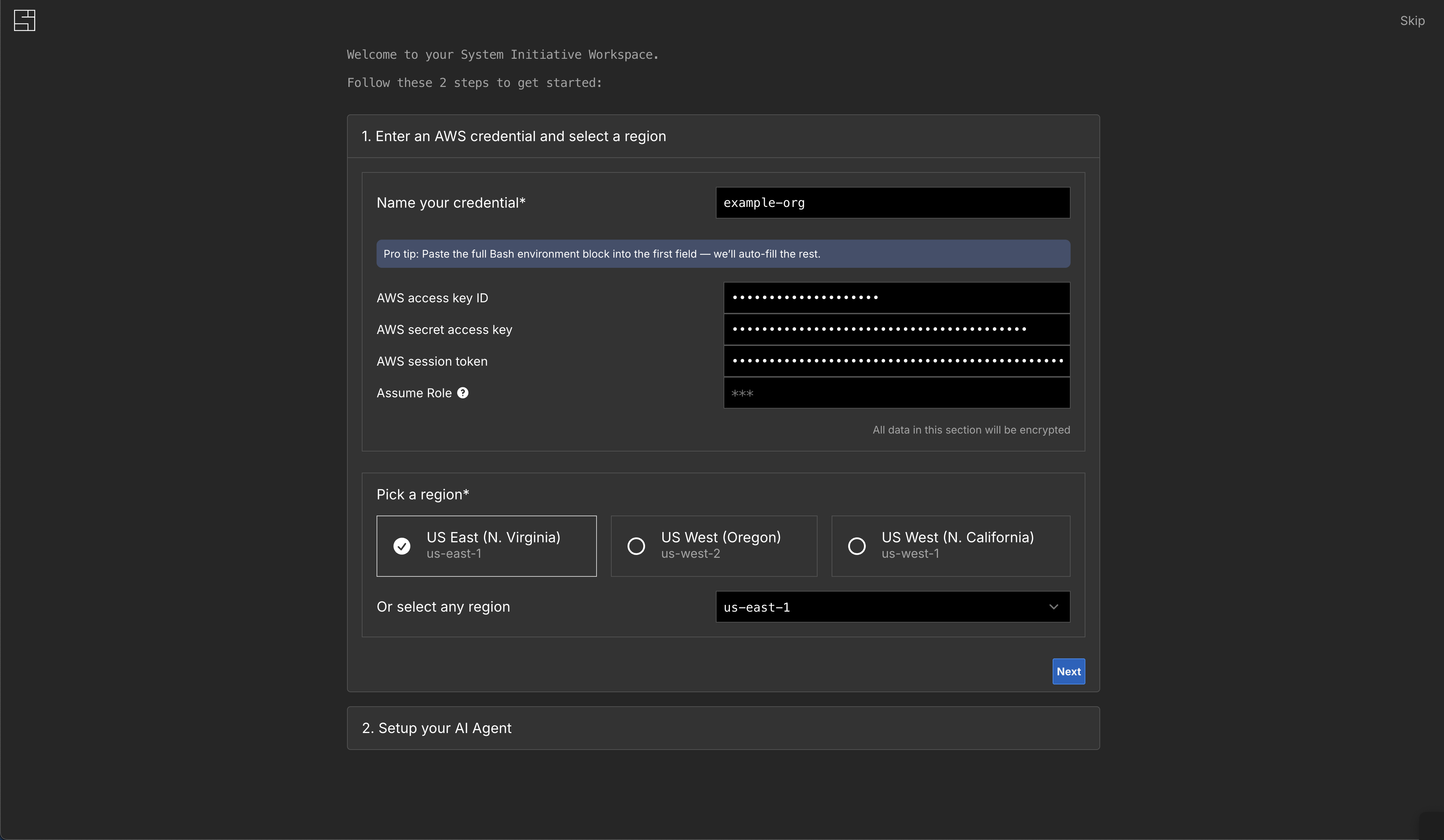

Fill in your AWS account's Access Key Id, Secret Access Key. Refer to the System Initiative AWS authentication documentation.
Click Add Secret to securely encrypt and save your Secret.

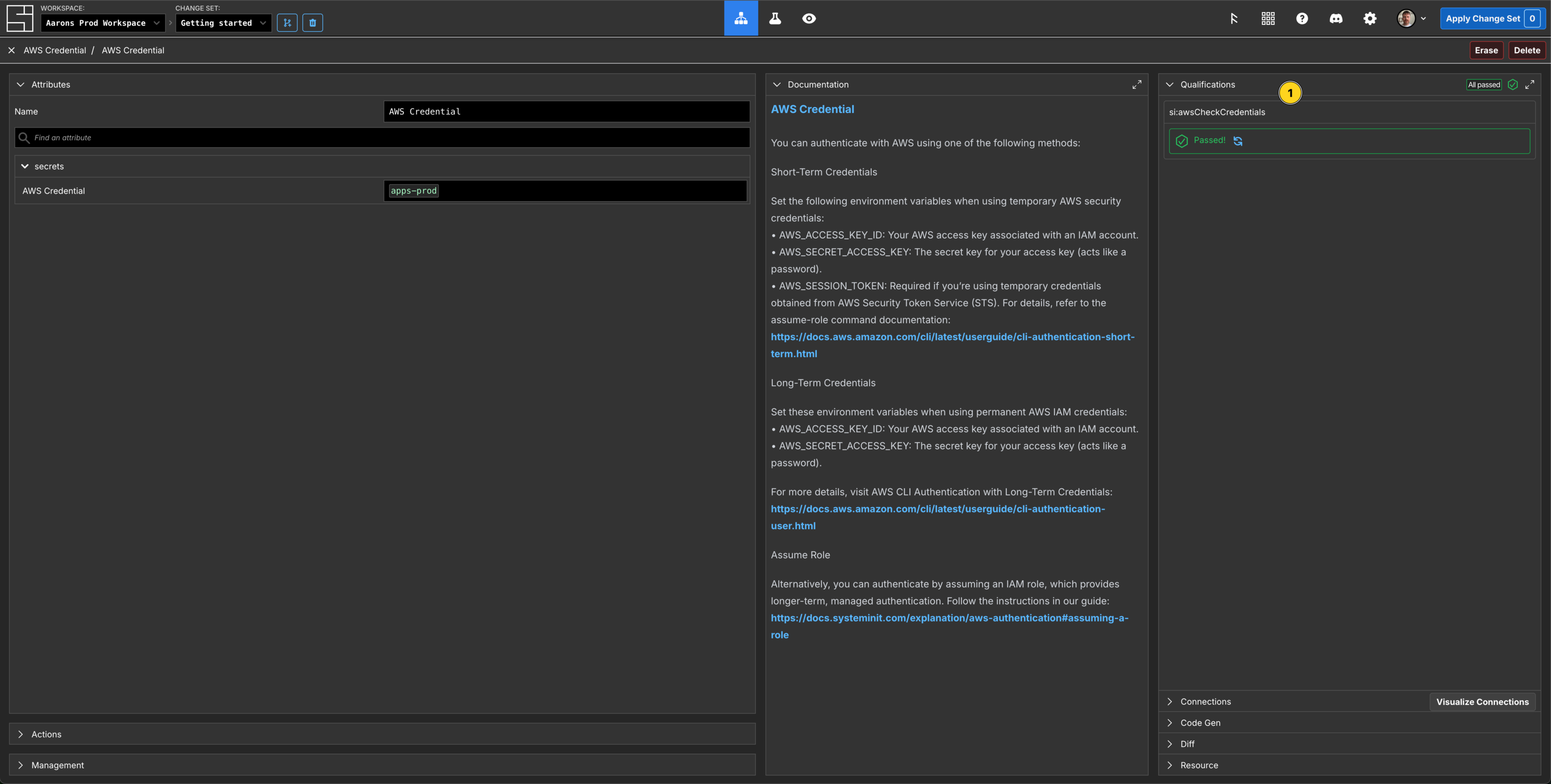

Notice that once you have configured valid credentials that the Qualification has automatically re-run and changed the status to Passed.
If you still see a red hexagon on the right panel (its
Qualification) after this step, it means that the credentials are invalid and need to be re-entered.

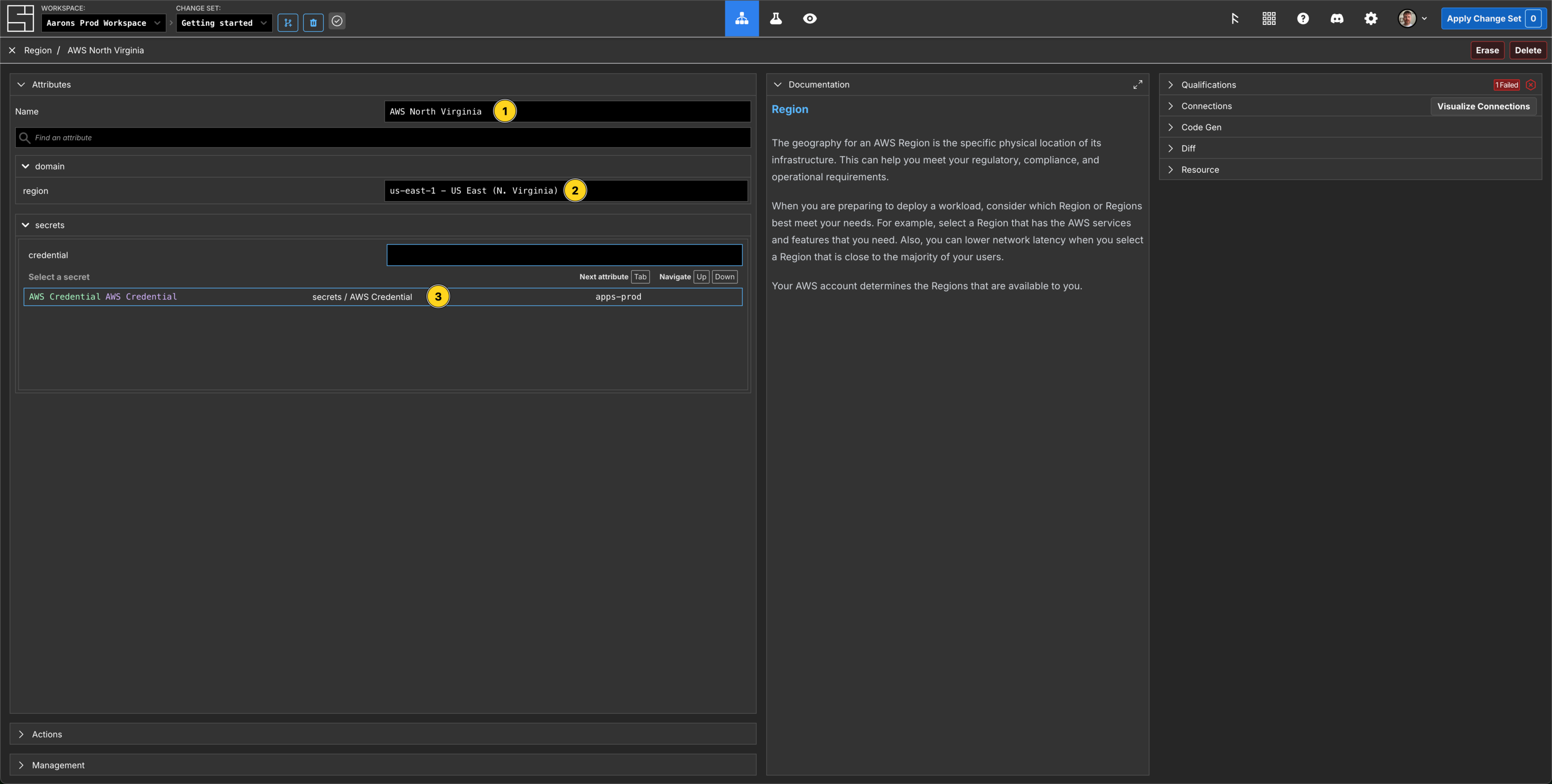

Add a Region Component and set its properties
Close (Esc) your AWS Credential component, then Add a component (N), then search for Region in the AWS category and then press Enter.
Name your region AWS North Virginia.
Set the region property to us-east-1.
Click the credential property field and select AWS Credential apps-prod. This creates a Subscription to the credentials of the AWS Credential Component, which are then evaluated by this Component's Qualification function.

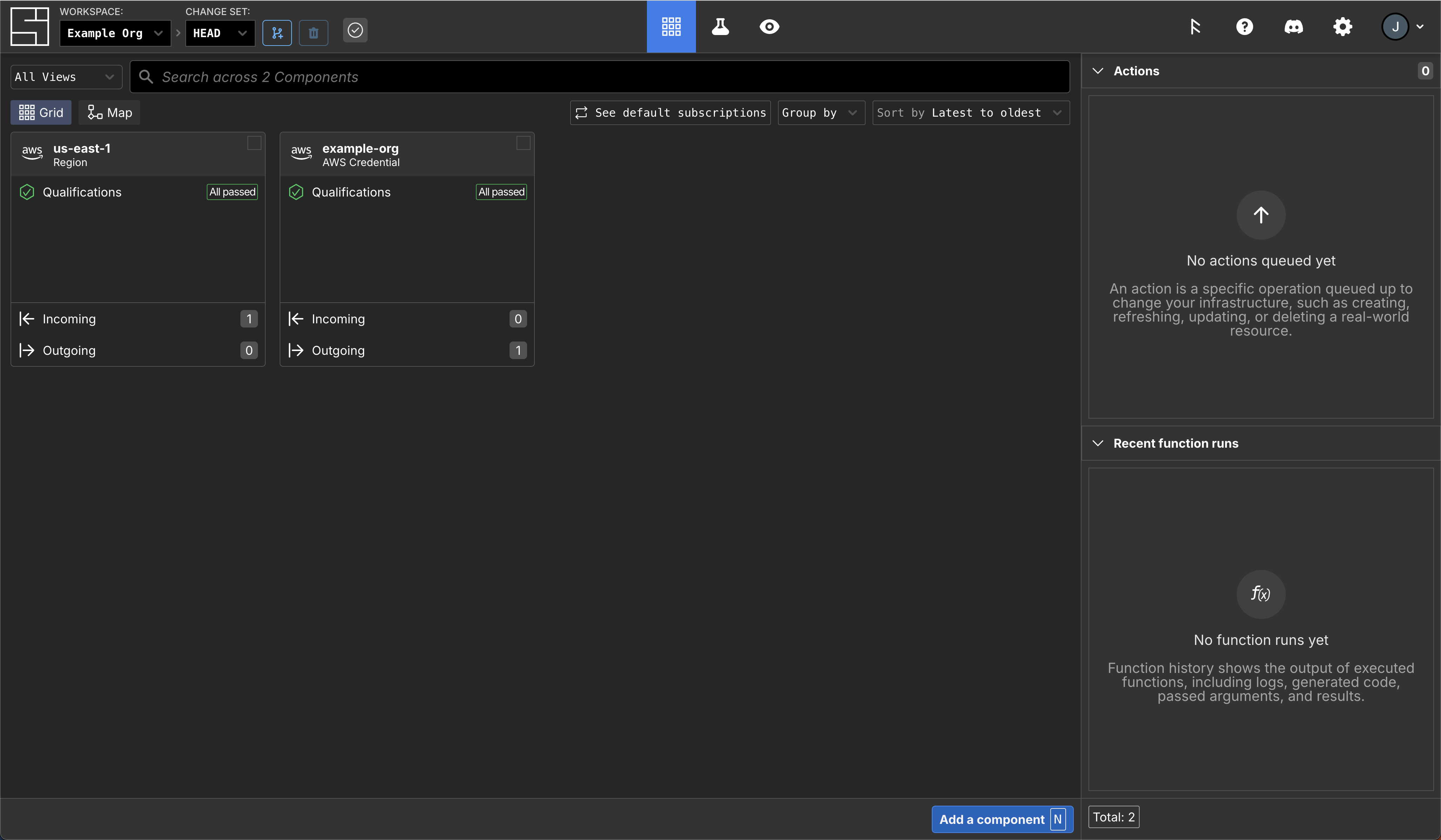

Close (Esc) your Region component to return to the Grid.

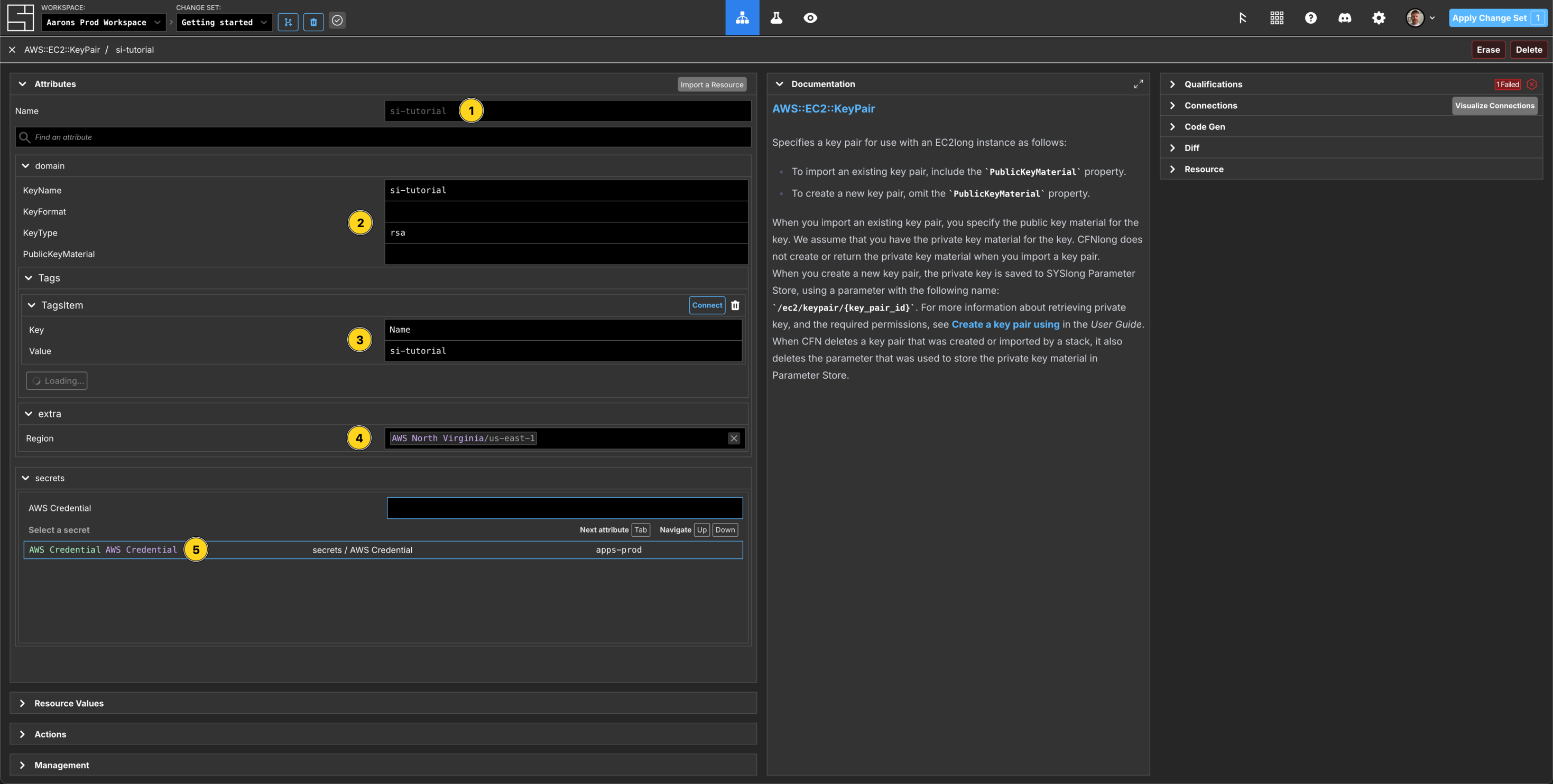

Add an AWS::EC2::KeyPair and set its properties
Click Add a component (or press N) and search for an AWS::EC2::KeyPair, when selected hit Enter.
Name your key pair si-tutorial.
Set the KeyName property to si-tutorial.
Set the KeyType to rsa.

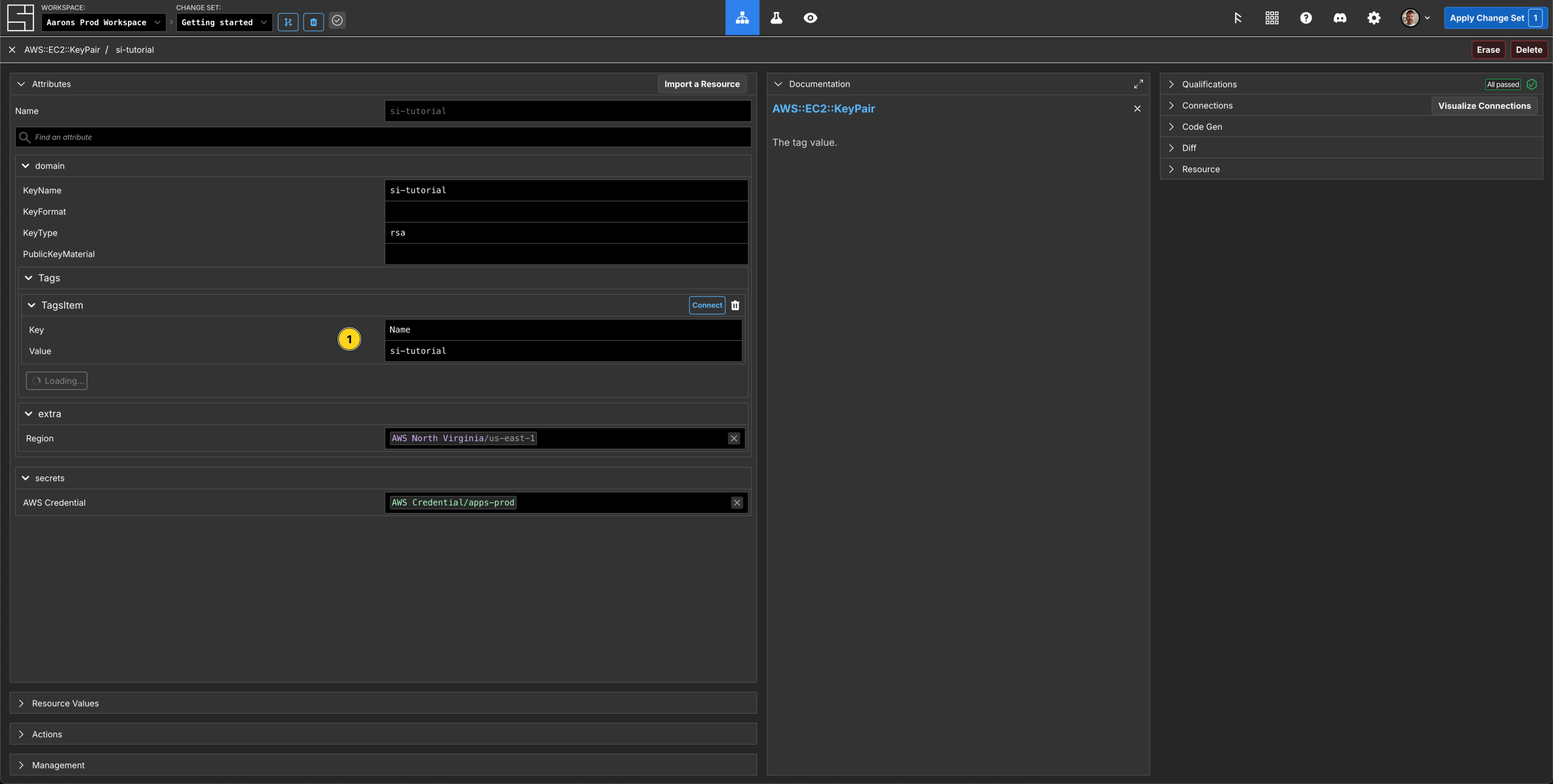

Observe the Tags property of this AWS::EC2::KeyPair component. This property is an array of Tag objects. Each Tag object has a Key and Value property.
Click or tab into the property and select Add "Tags" item, then set Key as Name and Value as si-tutorial. If you do not want to tag your key pair, just click the trash can icon to remove the Tags item.
Subscribe to your region and credential properties.
Import an AWS::EC2::Subnet
In your AWS account, your default VPC will have subnets for each availability zone. Copy one of the Subnet IDs from the AWS Console.
Add an AWS::EC2::Subnet component. Name your Subnet Imported Subnet. Set the Subscriptions to your region and credential properties, then in the Attribute panel header, click the Import a Resource button, paste your Subnet ID in and hit Enter.
A Subscription is the method by
which you connect the value of a property from one Component to another, ensuring that the value stays up to date across all subscribed Components.

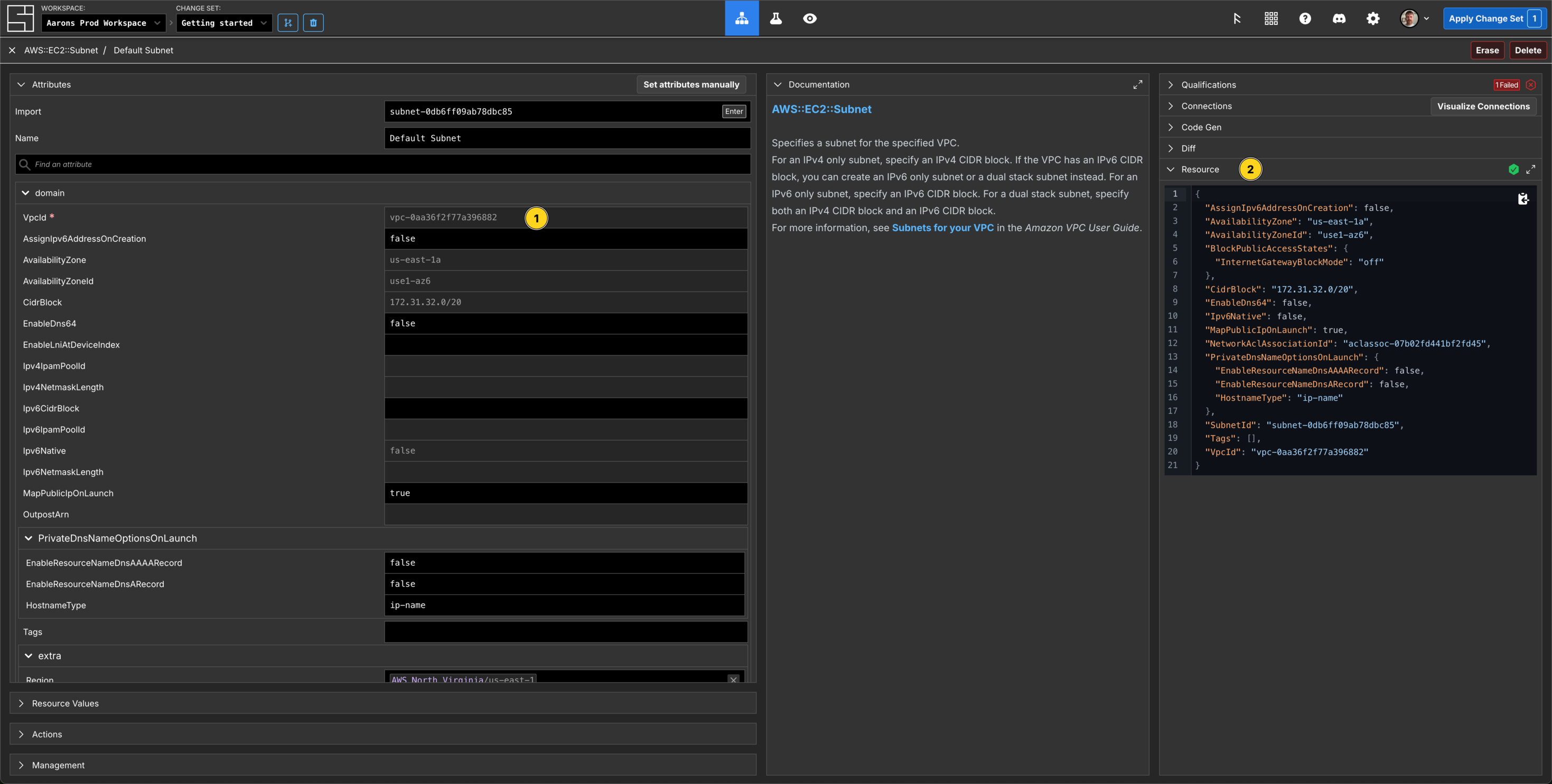

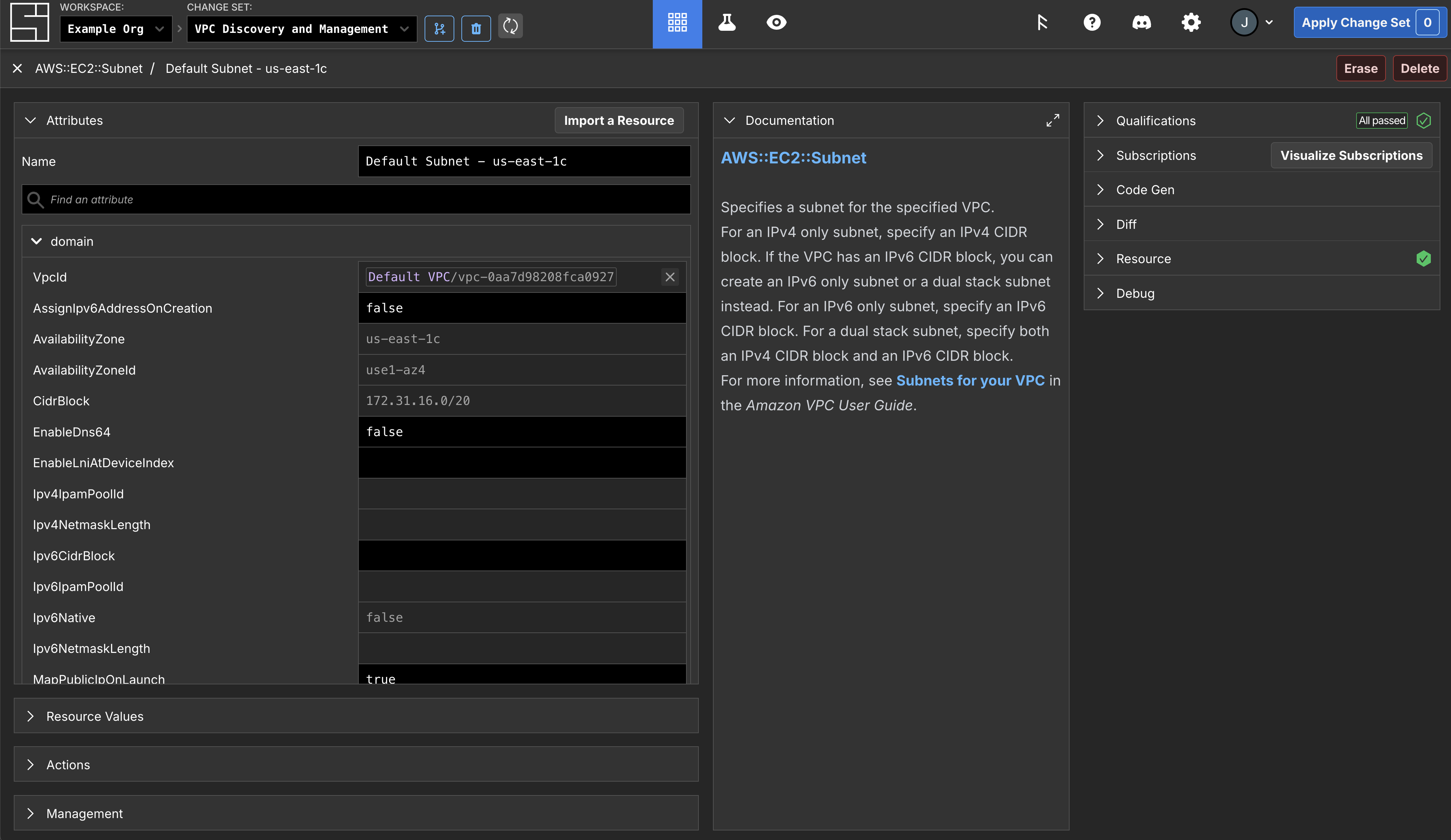

The Subnet will run a Refresh action to bring your asset under the management of your System Initiative Workspace and your Subnet will now be populated:

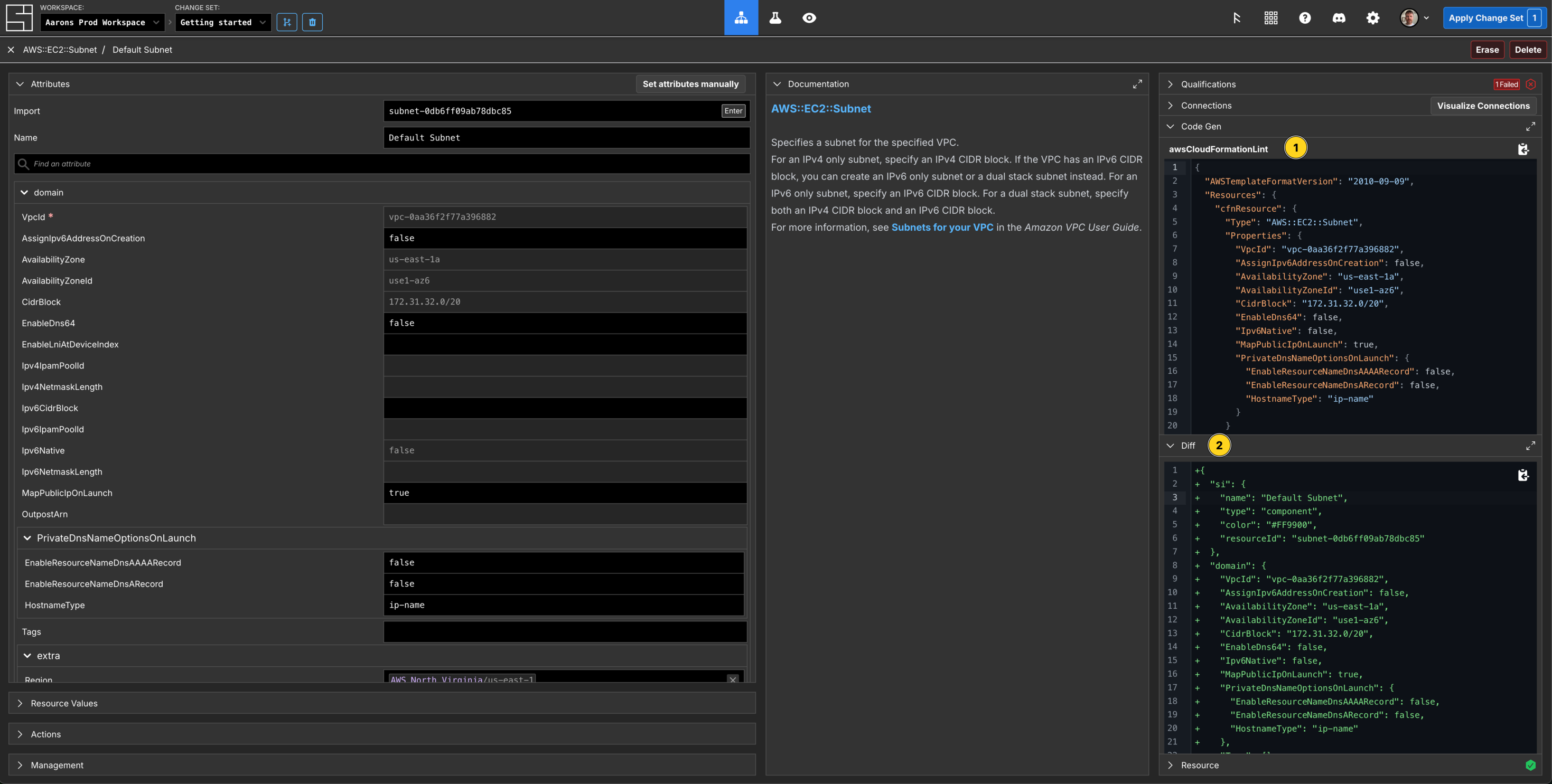

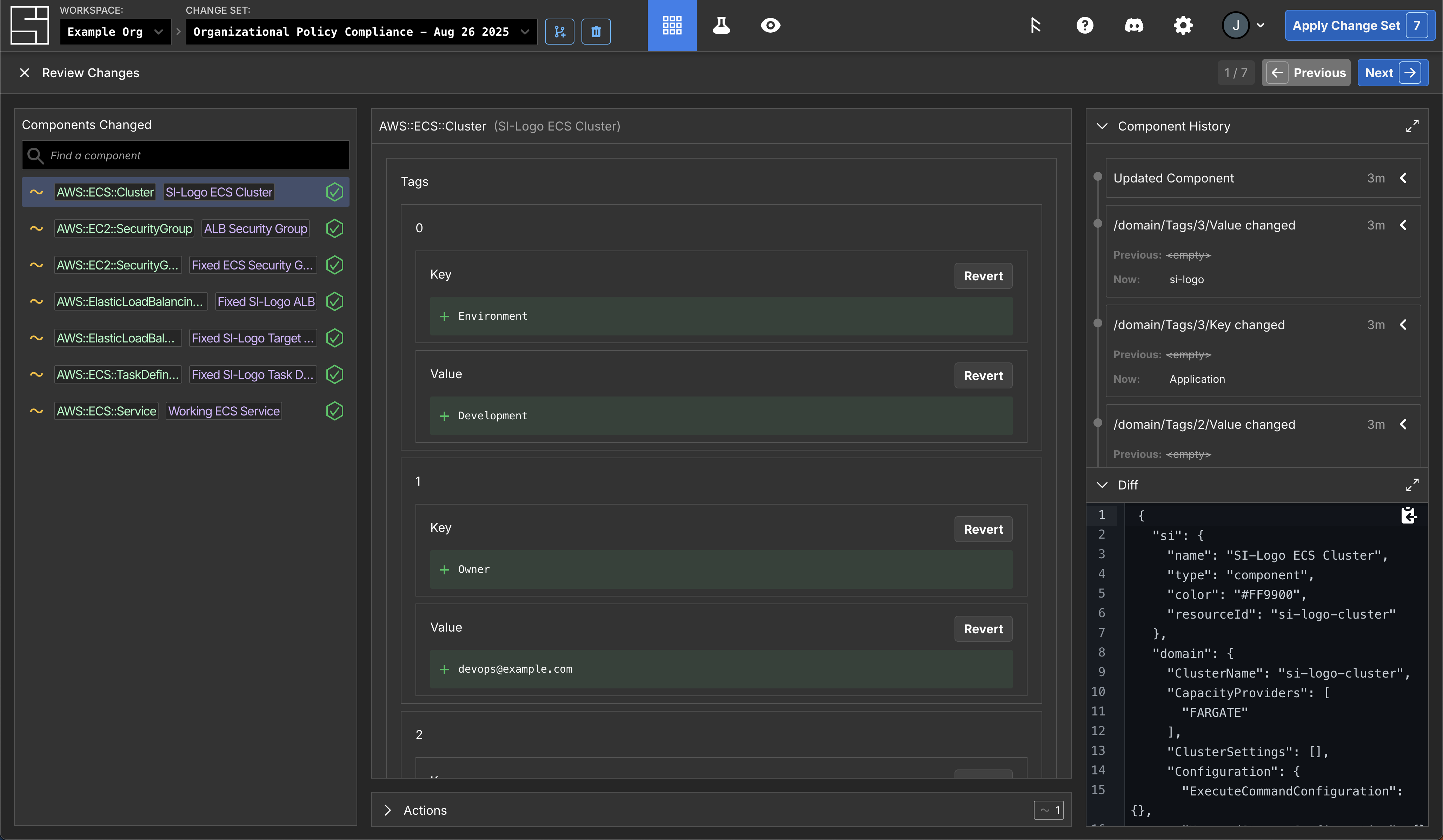

Now your subnet is imported and under System Initiative management, you can see the CodeGen and Diff sections populated:
CodeGen takes a representation of the Component and creates the correct
structure to pass the changes to the upstream provider API.
Diff is a comparison of the current state of the Component in your Change Set compared to HEAD.
Once this Change Set is applied, any further changes to your Components will be reflected in the Diff. Close (Esc) your Subnet component and continue to the next step.
Add an AWS::EC2::Instance Component and set its properties

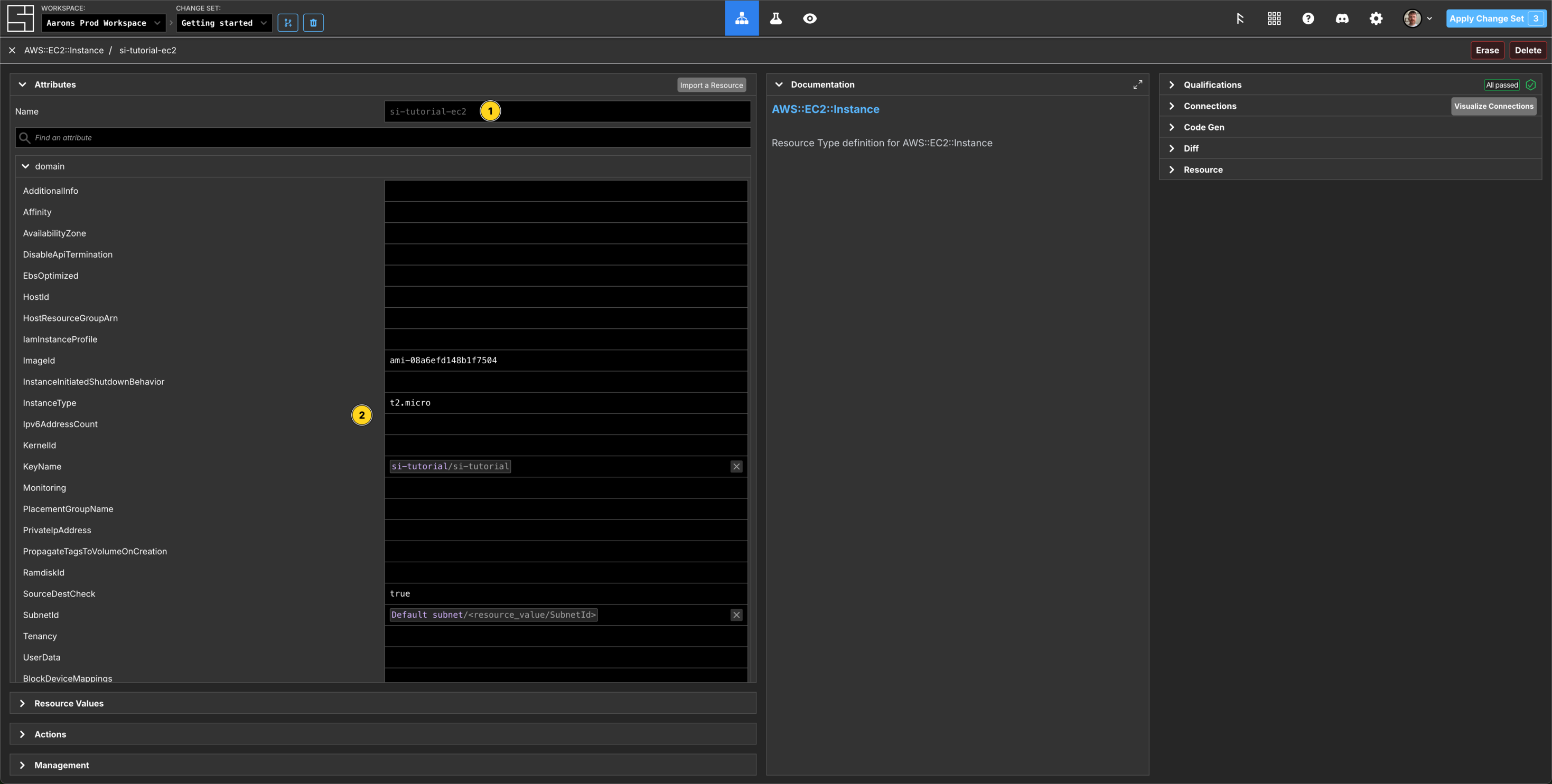

Add an AWS::EC2::Instance component.
Name your EC2 Instance Component si-tutorial-ec2.
Set the ImageId property to ami-08a6efd148b1f7504.
Set the InstanceType property to t2.micro.
Subscribe the KeyName property to your si-tutorial Key Pair components KeyName.
Subscribe the SubnetId property to your Default subnet Subnet components SubnetId.
Subscribe to your region and credential properties in this si-tutorial-ec2 EC2 Instance Component.
A visual representation of your Components

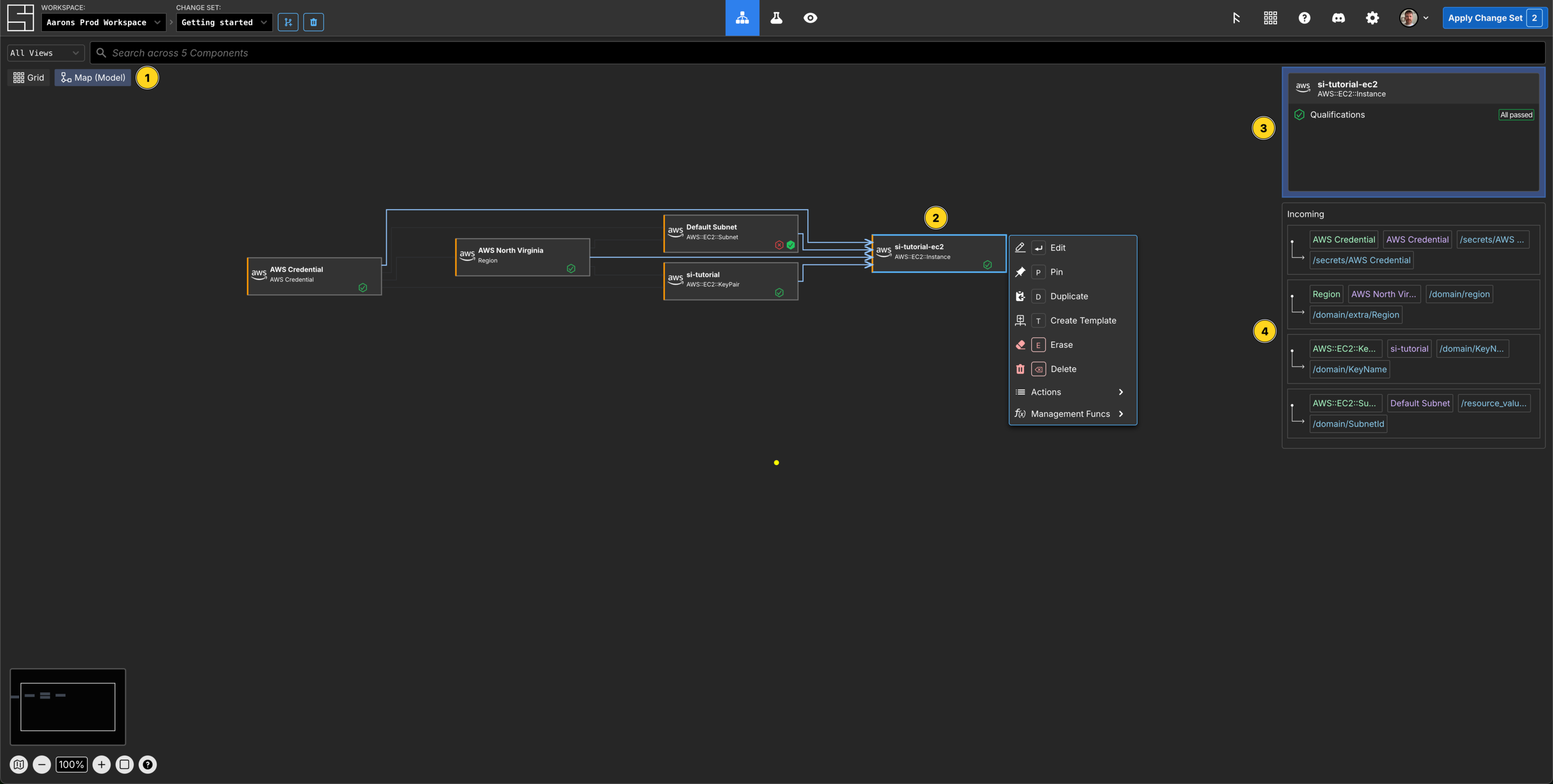

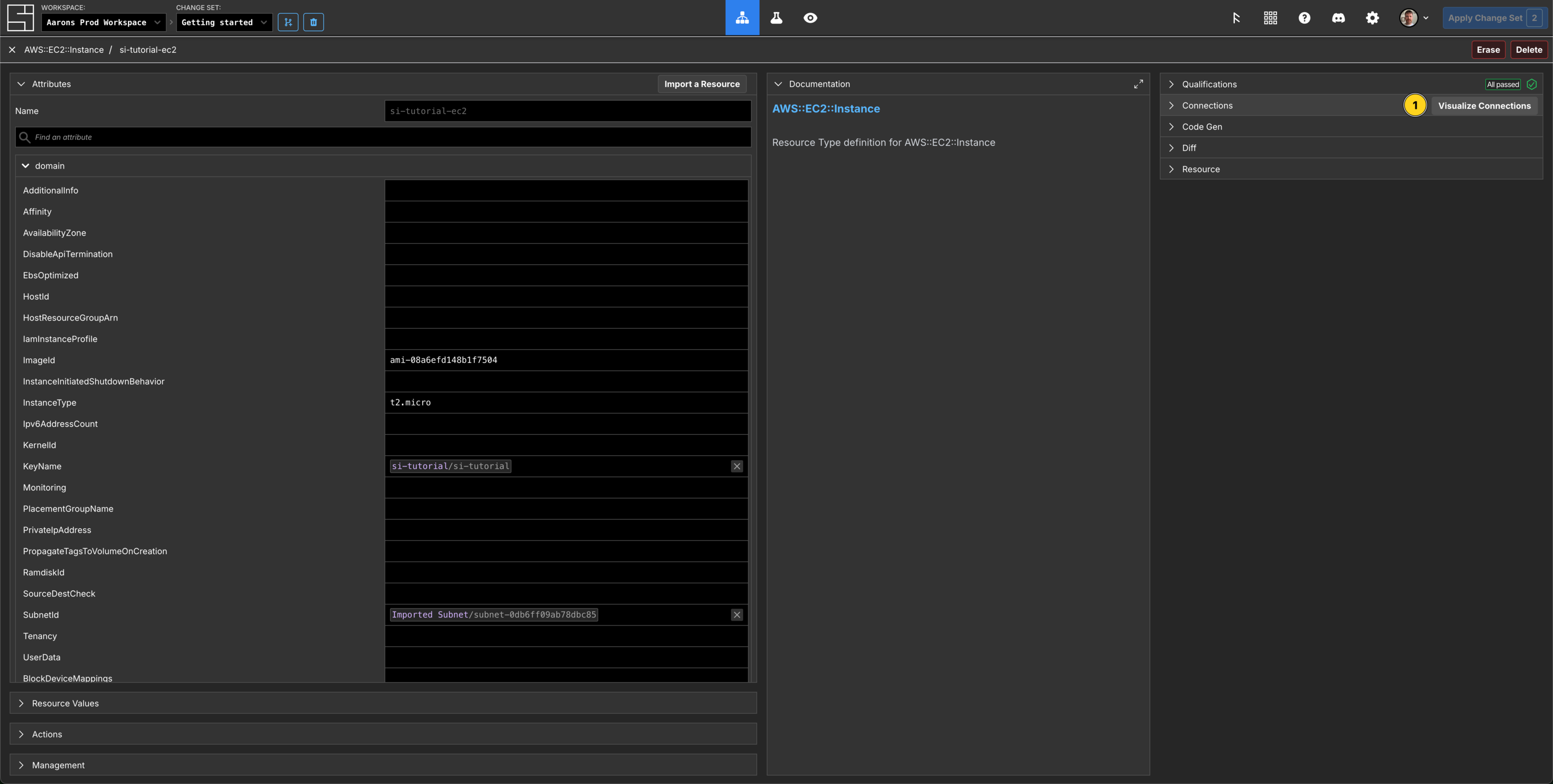

While in your AWS::EC2::Instance component, click the Visualize Connections button (labelled above) to see a visual representation of your proposed AWS infrastructure. To view an individual components subscribed properties in the Map view, click or right click the Component:
In this example you can see the AWS::EC2::Instance is selected. Its properties are displayed both via the blue highlighted arrows, and the Incoming and Outgoing subscriptions on the right hand side underneath the component Qualification. If you right click the component, you can also take action e.g. Edit, Duplicate, Delete from the Map.
Apply the Change Set

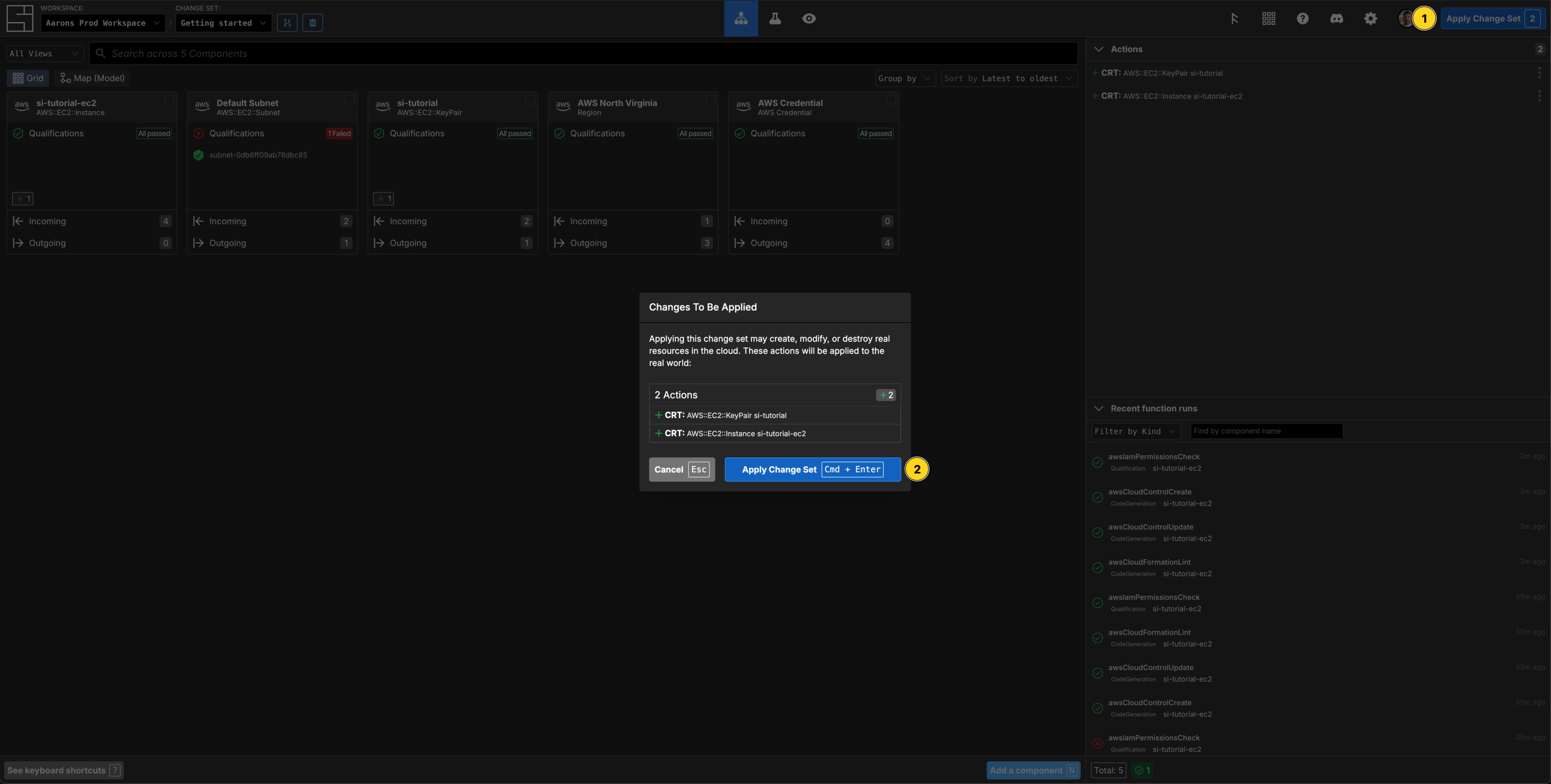

Press the Apply Change Set button.
You will see two actions enqueued in the Actions panel - one to create the AWS::EC2::KeyPair and one to create the AWS::EC2::Instance.
You'll be prompted with a dialog to confirm you want to take these two actions. Press the Apply Changes button in the dialog to confirm.
Creating the Resources
Applying the Change Set redirects you to HEAD, and runs your actions. As the actions are successfully completed, the resulting resources are added to each Component. In the below example, see the Subnet has a green tick and with a Subnet ID.
Once the Actions have completed, you'll see the Actions panel will be empty and your tiles will have solid green ticks and resource ids where appropriate.
If you made a mistake, one of the two actions may fail, if this
happens, create a new Change Set, double check the values in your Components and re-apply.
Search for a component with a specific property

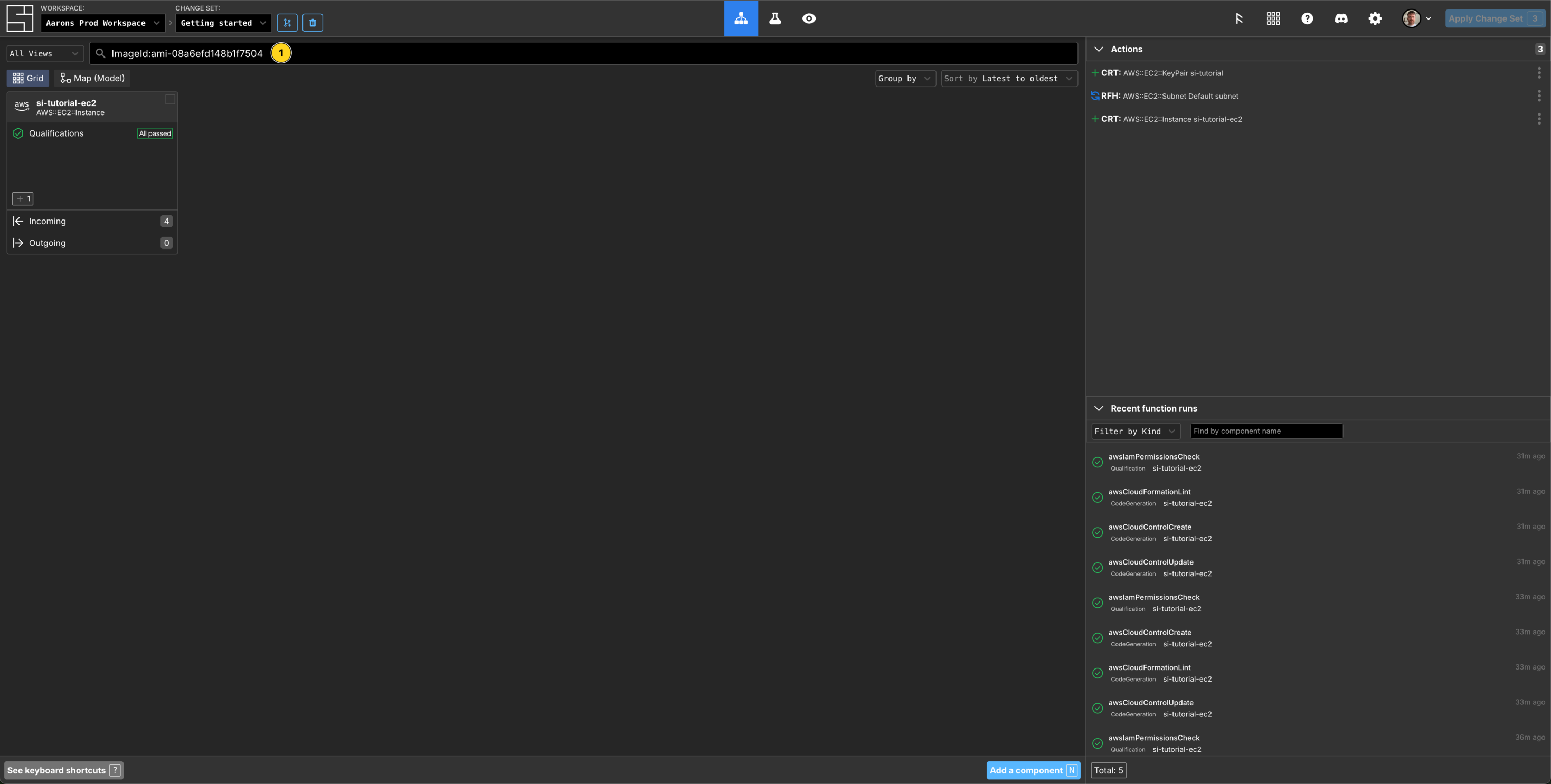

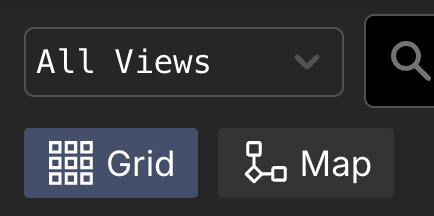

Across both the Grid and Map views you are able to search for components by given name, Component type or even via a specific property. For example, you can search for Components that contain a specific ImageId. In the search bar, enter ImageId:ami-08a6efd148b1f7504.
Some further useful search examples:
- To search for Components by schema -
schema:AWS::EC2::Instance- returns all EC2 Instance Components. - To search for multiple components by via different means -
schema:AWS::EC2::Instance | subnet | KeyName:si-tutorial- this search would find all EC2 Instances, all subnets (fuzzy search) and Components that have a KeyName of si-tutorial. - To return all Components that aren't an AWS::EC2::Instance -
!schema:AWS::EC2::Instance - Or to search for an EC2 Instance and Subnet via their regions -
Instance region:us-east-1 | Subnet region:us-east-1

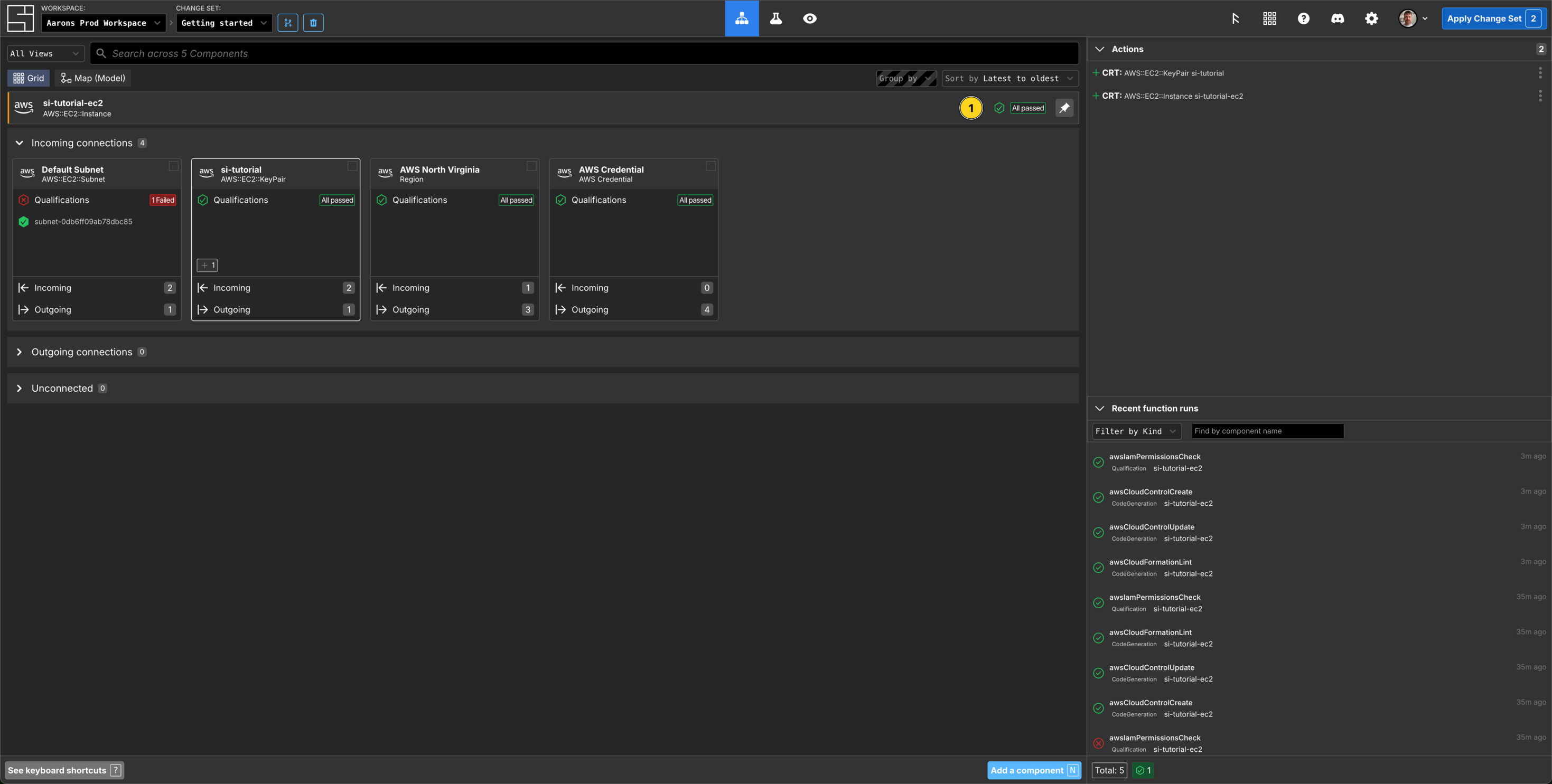

Another useful feature here is the ability to Pin a component, right click, select Pin or press P, now clear your search bar, the component is now pinned to the top of your workspace:
Review the si-tutorial EC2 Instances resource data

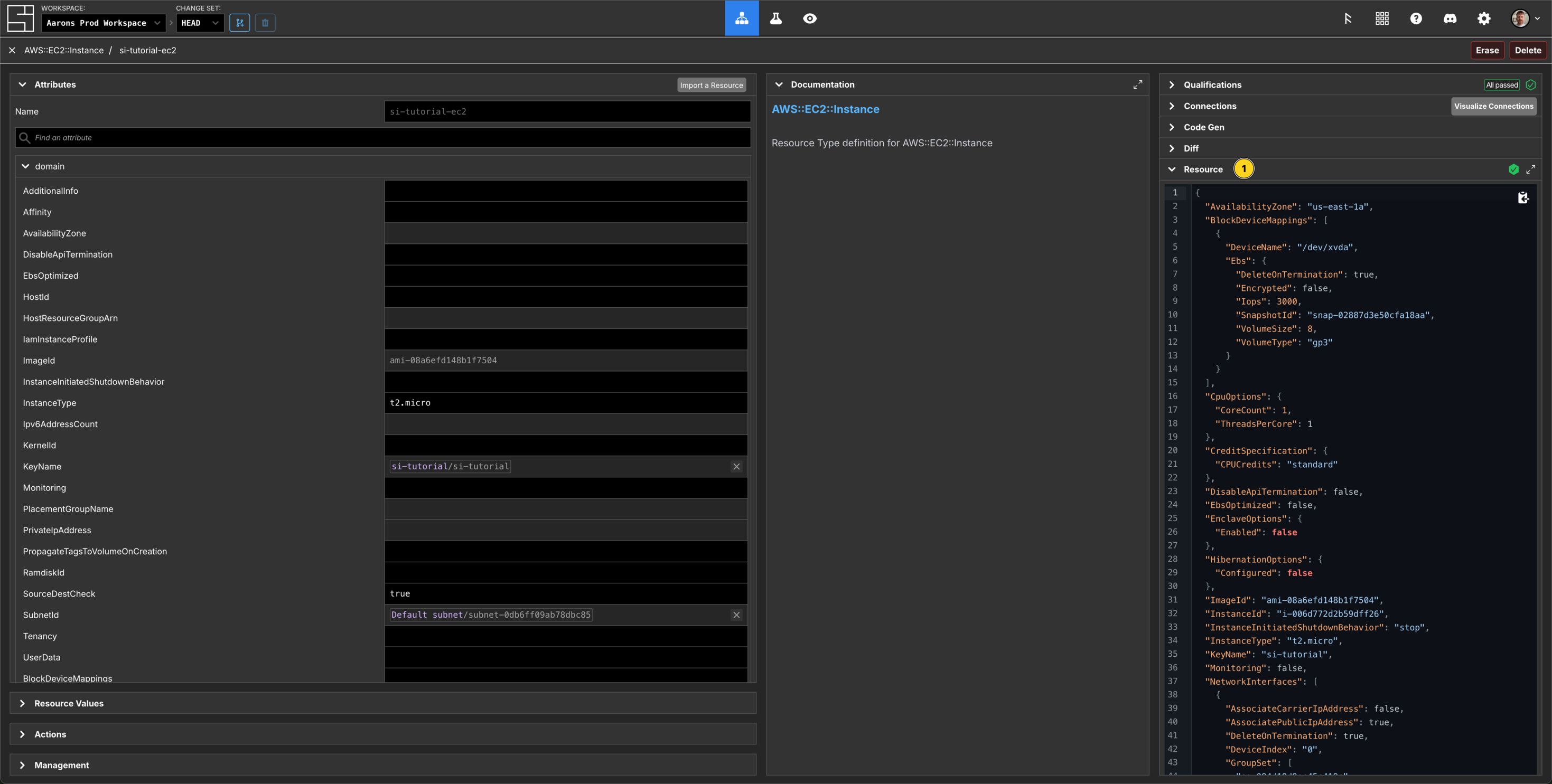

Click the si-tutorial-ec2 EC2 Instance. Then in the right side panel click Resource. You will see all the information about the EC2 Instance we created in AWS.
Congratulations! You have created your first few resources with System Initiative.
Clean up
Create a new Change Set called Cleanup.

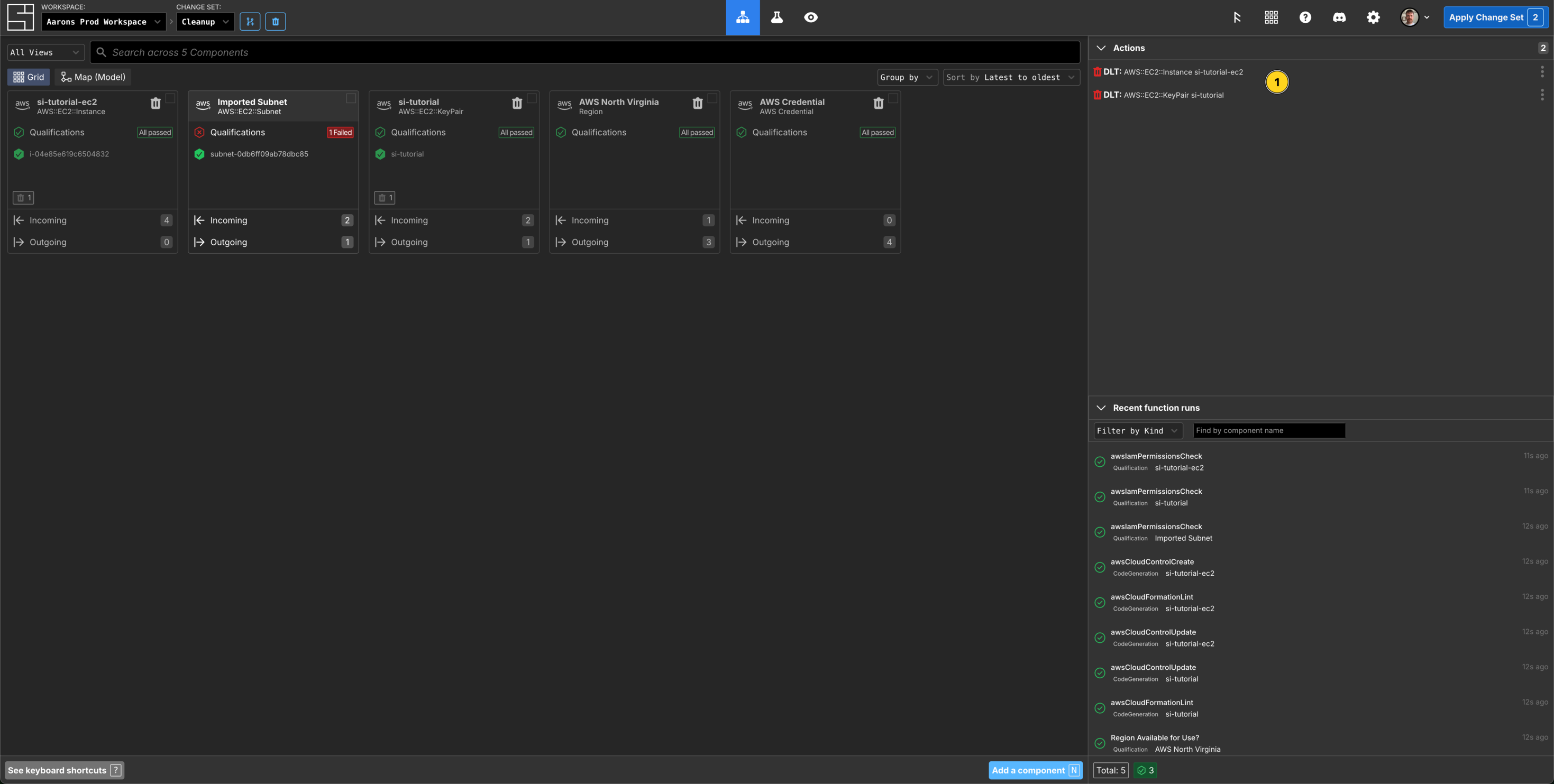

Search for everything but the Subnet by entering !Subnet in the Search bar and press Enter. Press Cmd/Ctrl+A to select all returned Components, then in the Context Menu, click Delete. This will present you with a Delete Component dialog, click Confirm. You will now see two Delete actions queued in the Actions panel. Clear the Search bar.

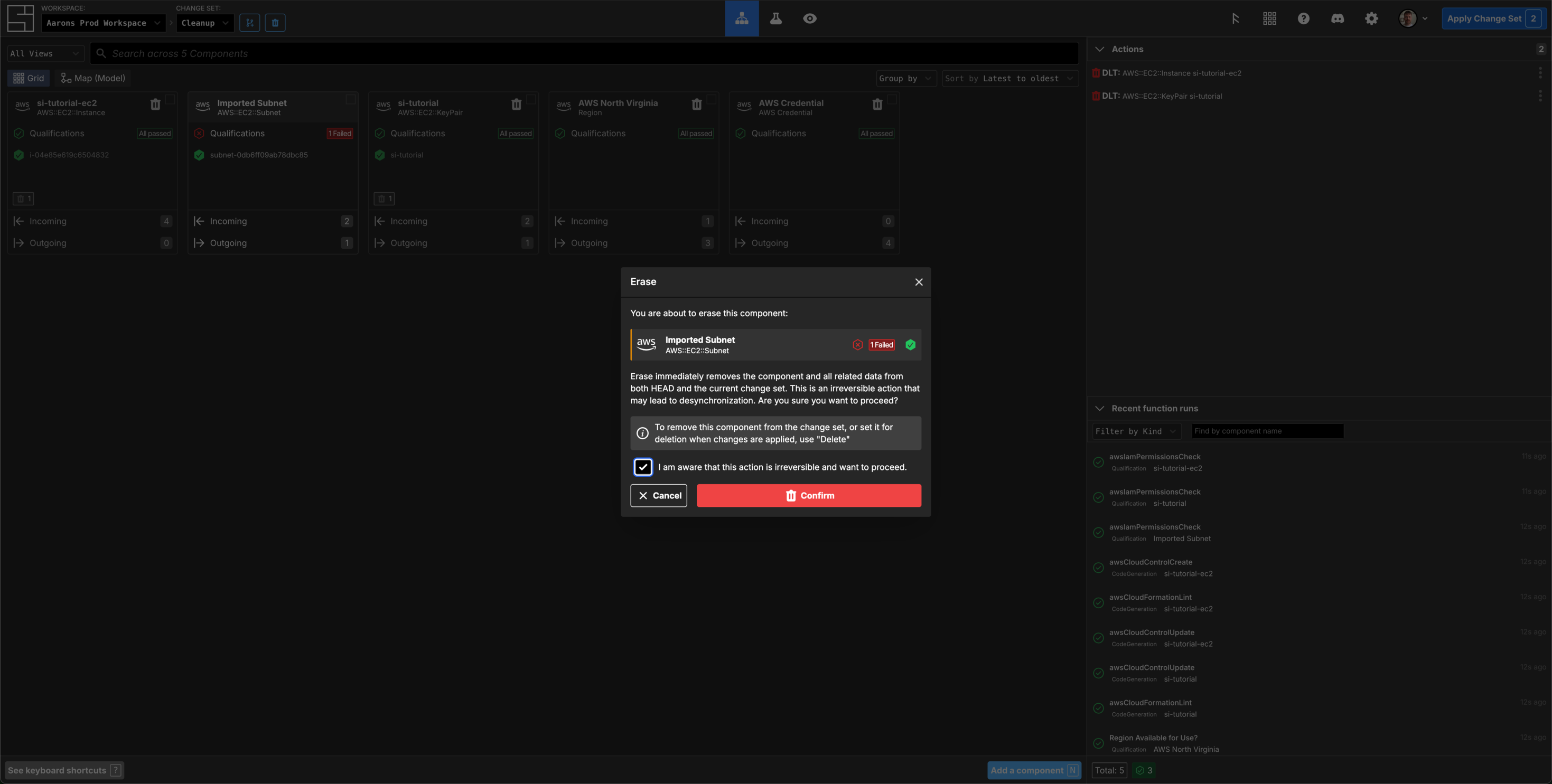

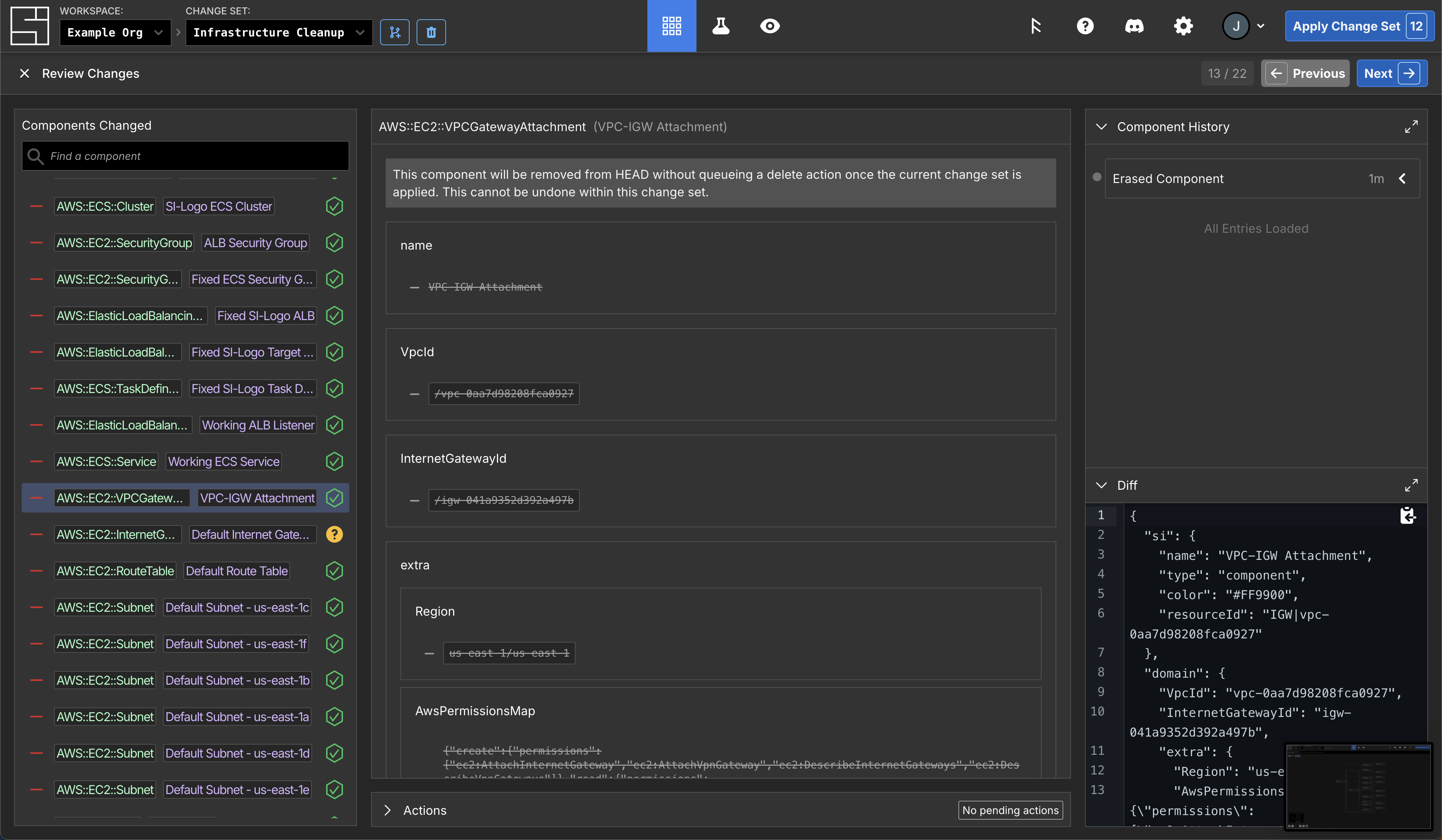

To remove a Component but not delete the resource, right-click the AWS::EC2::Subnet Component and select Erase. This will delete the Component from your Workspace but not from AWS. Erase immediately removes the Component and all related data from both HEAD and the current change set. In the Erase dialog, tick the confirmation checkbox and then click the Confirm button.

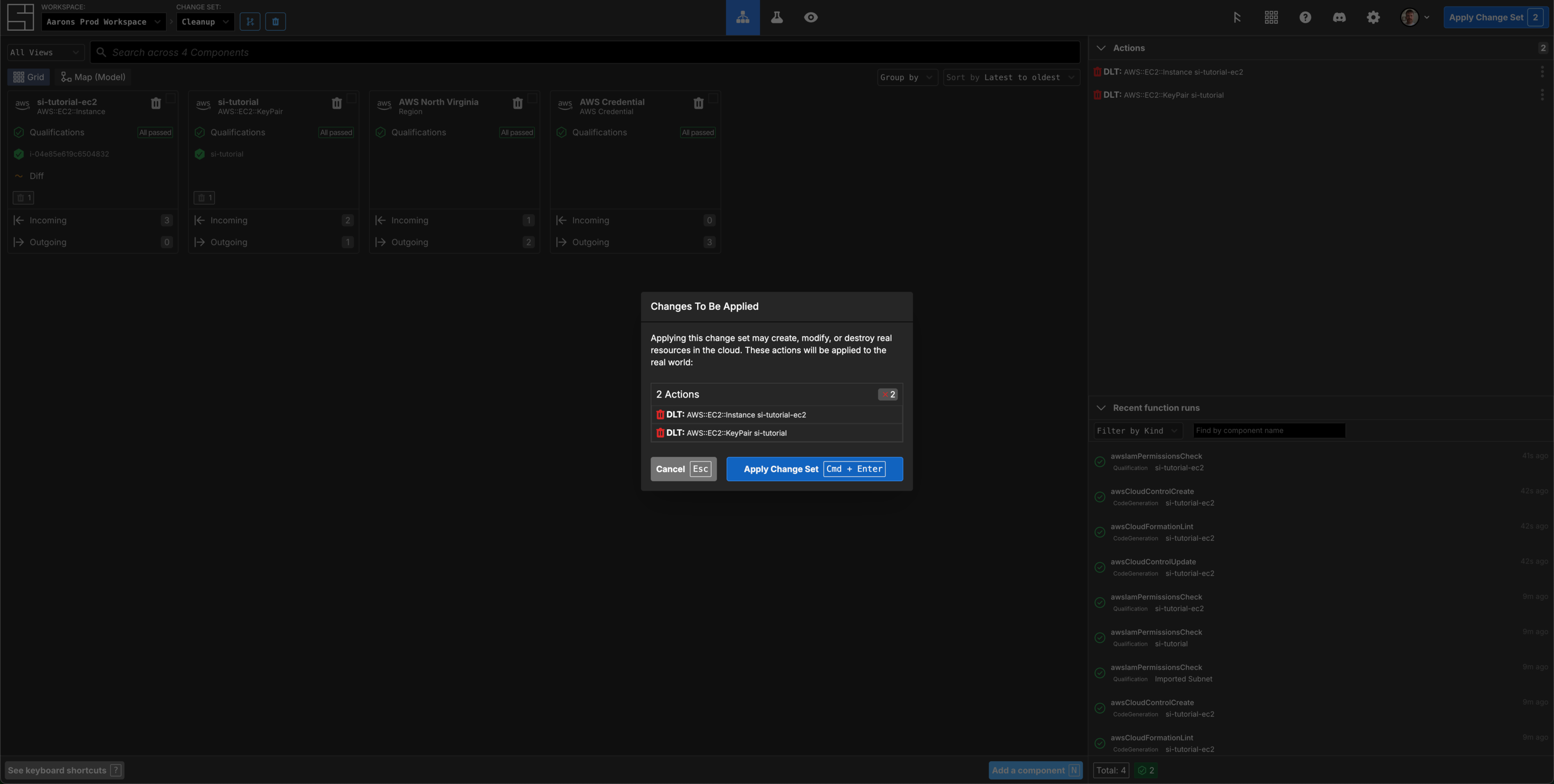

Click the Apply Change Set button to delete your AWS::EC2::Instance and AWS::EC2::KeyPair. Confirm you want to apply the Change Set.
After the two delete actions are run, you will have a blank workspace, and no compute resources running in AWS.
Congratulations
Congratulations - you've created your first resources with System Initiative. You learned how to:
- Create new Change Sets
- Add an AWS Credential and Region
- View and troubleshoot a Component Qualification
- Add Components to the Workspace
- Configure Components by setting their properties
- Connect Components via Prop to prop subscriptions
- Import existing infrastructure to your workspace
- View your proposed infrastructure and property subscriptions on the Map
- Search for Components via specific properties
- Pin a Component to the top of your workspace
- Execute actions and create resources by applying a Change Set
- Erase Components and Delete resources to tidy up your workspace
Vocabulary
In this tutorial bits of System Initiative Vocabulary will be shown with a capital letter. All definitions for these can be found here: System Initative - Vocabulary
