Components

Components are the 1:1 mapping to your cloud infrastructure. System Initiative components are instances of Schemas. You can name components within System Initiative and those names will not affect your cloud infrastructure.

Components have attribute data and resource data. Attribute data represents all the configurations your cloud infrastructure supports. Resource data represents the state of your cloud infrastructure.

Attributes

Components have attributes that can be assigned values. Attributes are typed (boolean, number, string) and defined by its schema. Each change to a component's attribute values is tracked in the audit log.

Attributes are organized into hierarchical trees. For example, the AWS::EC2::Subnet component has an attribute named VpcId. It's location in the attribute tree, what we call the path, is /domain/VpcId.

System Initiative supports maps, objects, and arrays in the attribute tree. Map is an arbitrary key-value shape where the user can define the keys. Object is a specific shape where the keys are defined by the schema. Array is a list that supports any of the aforementioned types.

Subscriptions

Subscriptions are how components depend on one another. A subscription moves the value from Component A's specified attribute path to another attribute path on Component B. The paths are not required to match. When the value in Component A is changed that change will be reflected in Component B.

Let's use the VPC example in AWS again. When creating a Subnet component that needs a VpcId you want that component to subscribe to the Vpc component in order to obtain the VpcId the subnet needs. The VpcId value will flow from the Vpc component into the Subnet component whenever it changes.

Resources

A resource in System Initiative is the data that describes the specific instance within the cloud provider. The cloud provider controls the shape of the resource data.

Most components can have a resource. When you create a component it will initially not have a resource. If you import a component it will have a resource. A Component with a resource represents cloud infrastructure in the real world. Actions update resources within System Initiative and apply your changes within SI to your cloud infrastructure.

INFO

Certain Components like "AWS Region" do not have a resource, as it does not map to an instance of cloud infrastructure; rather, it is a reference for pre-existing cloud configuration data.

Interacting With Components

Creating a Component

To create a Component with the CLI:

$ cat createcomponent.json
{
  "schemaName": "AWS::EC2::Instance",
  "attributes": {
    "/si/name": "ANodeEC2Instance",
    "/domain/extra/Region": "us-east-1"
  }
}

$ si component create -c 01KC2F3RWYRYQDZ3BRNG69FC28 createcomponent.json
✨ info    si              Loading component data from "createcomponent.json"
✨ info    si              Creating component: "AWS::EC2::Instance" "ANodeEC2Instance"
Component ID: 01KC4CNSWFCSJDY3M30BMYRTMP

To create a Component with the AI Agent:

> Create a EC2 Instance component named MyNodeEC2Instance

⏺ Perfect! I've successfully created the EC2 Instance component named "MyNodeEC2Instance" in the "Create Component" change set. The component has been configured with:

  - Component ID: 01KC28S0R3W977CNWWNE764M04
  - Schema: AWS::EC2::Instance

  The component is now ready for you to configure additional attributes like:
  - ImageId (AMI ID)
  - InstanceType (e.g., t2.micro, t3.small)
  - KeyName (SSH key)
  - SecurityGroupIds or SecurityGroups
  - SubnetId (if using VPC)
  - UserData (bootstrap scripts)

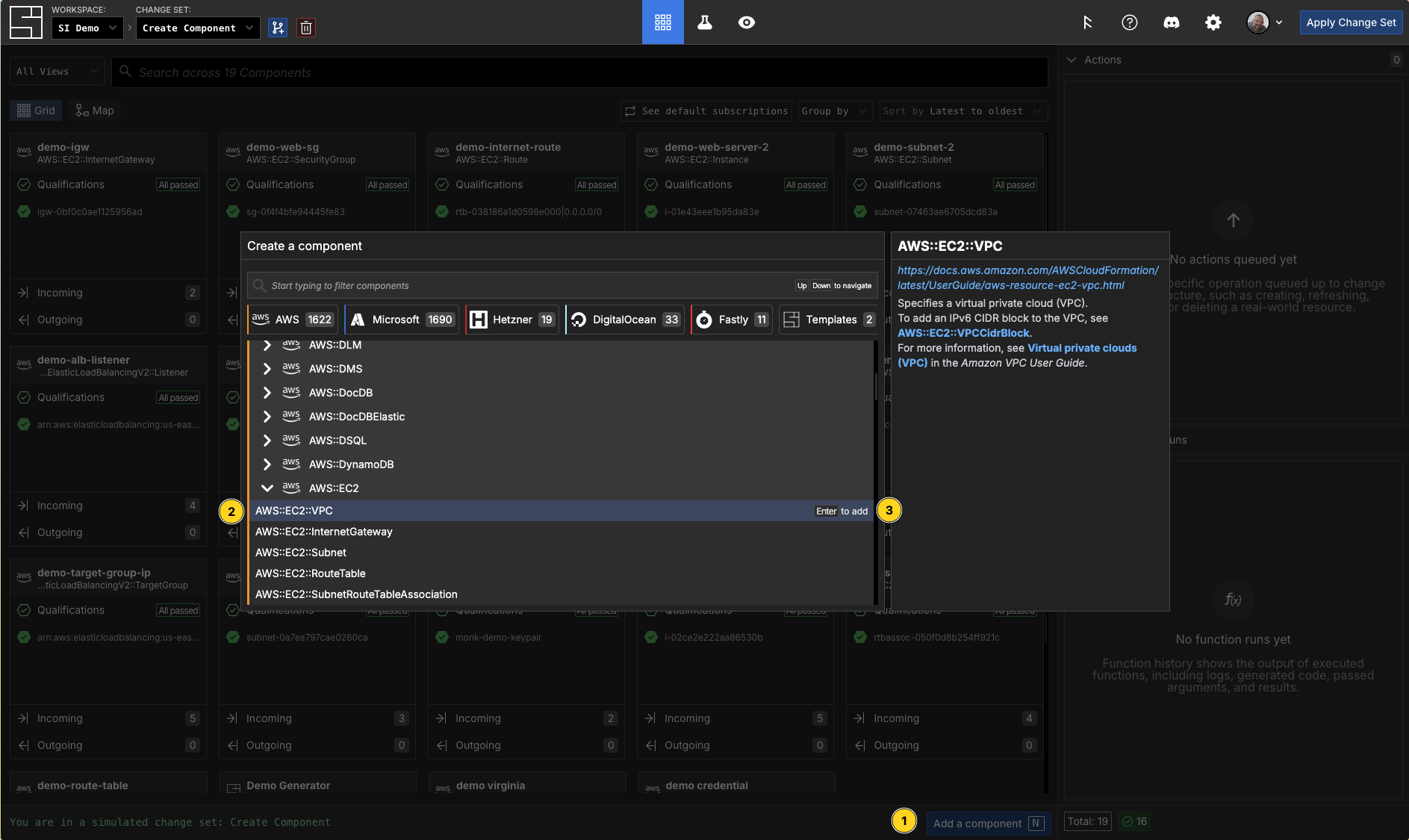

To create a Component:

1. Press the N hotkey or click the 'Add a component' button from the bottom bar.
2. Use the mouse or keyboard to find the Schema you are looking for.
3. Double click, or hit enter, on the selected Schema.

TypeScript

const response = await componentsApi.createComponent({
  workspaceId,
  changeSetId,
  createComponentV1Request: {
    componentName,
    schemaName,
  },
});

Python

request = CreateComponentV1Request(
    name=component_name,
    schema_name=schema_name,
)

response = components_api.create_component(
    workspace_id=workspace_id,
    change_set_id=change_set_id,
    create_change_set_v1_request=request,
)

Getting a Component

$ si component get -c 01KC2F3RWYRYQDZ3BRNG69FC28 MyNodeEC2Instance -o json
{
  "componentId": "01KBNCGCKKKHSAE23R1E2E8TMA",
  "schemaId": "01JK0QZHF0TXMJFVE1VK2175EC",
  "schemaName": "AWS::EC2::Instance",
  "resourceId": "",
  "toDelete": false,
  "canBeUpgraded": false,
  "qualified": true,
  "attributes": {
    "/si/name": "MyNodeEC2Instance",
    "/si/type": "component"
  },
  "qualifications": [],
  "actions": []
}

> Get the component details for MyNodeEC2Instance
⏺ Here are the details for MyNodeEC2Instance:

  Component Information:
  - Component ID: 01KC2EQ26S2T2BS5A1AD0HVPDS
  - Component Name: MyNodeEC2Instance
  - Schema: AWS::EC2::Instance
  - Resource ID: (not yet created)

  Attributes:
  - /si/name: "MyNodeEC2Instance"
  - /domain/extra/Region: "us-east-1" (direct value)
  - /secrets/AWS Credential: Subscribed to component 01KBN7TC89C9QHFNPKXV26PRND

  Available Actions:
  - Create Asset
  - Update Asset
  - Refresh Asset
  - Delete Asset
  - Start Ec2 Instance
  - Stop Ec2 Instance
  - Reboot Ec2 Instance

  Available Management Functions:
  - Import from AWS
  - Discover on AWS

  The component currently has the region set to "us-east-1" and has an AWS Credential subscription configured. However, it appears that no other EC2 instance attributes have been set yet (like InstanceType, ImageId, etc.).

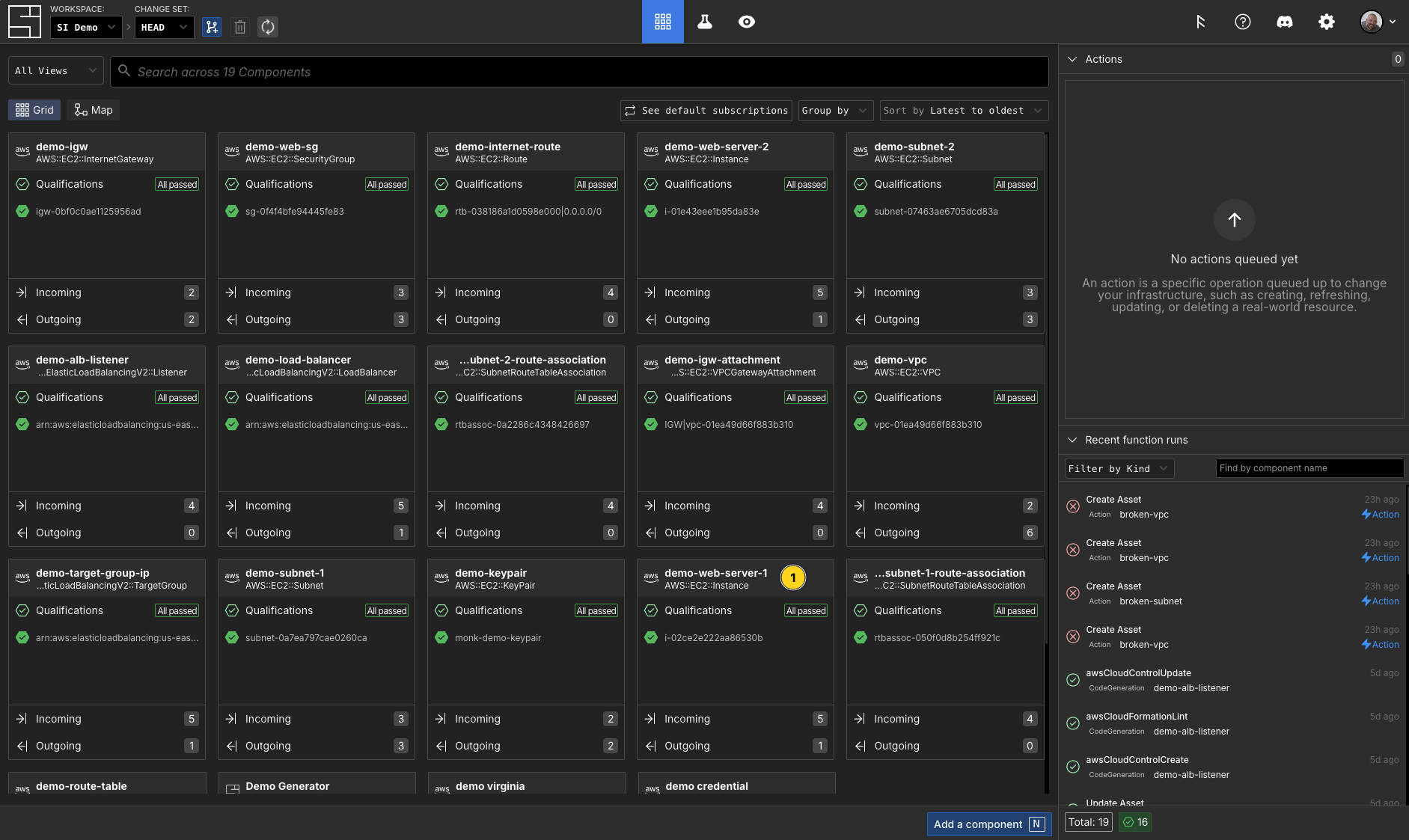

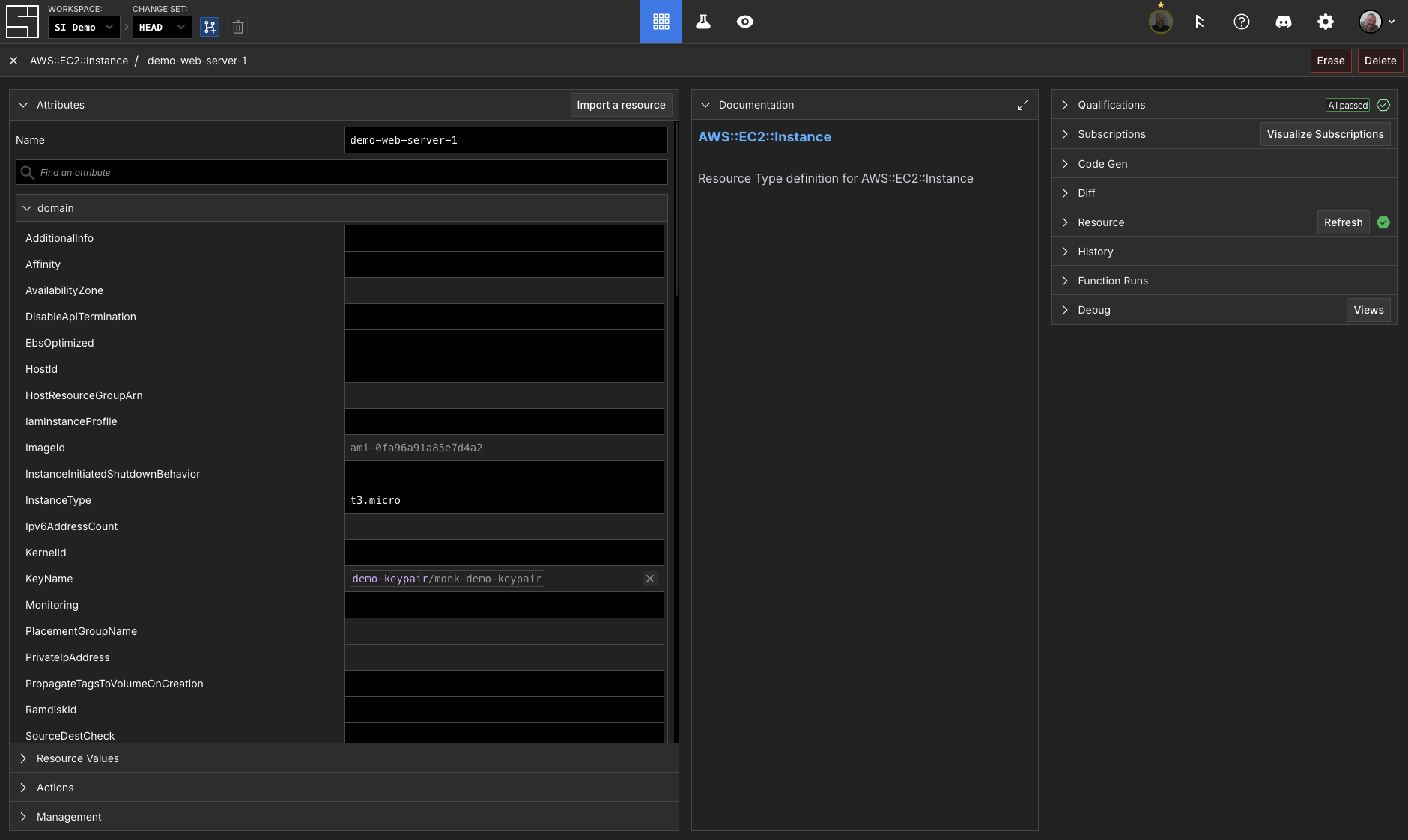

1. Click on a component
2. See its details

TypeScript

const response = await componentsApi.getComponent({
  workspaceId,
  changeSetId,
  componentId,
});

const findResponse = await componentsApi.findComponent({
  workspaceId,
  changeSetId,
  {
    name,
  },
});

Python

response = components_api.get_component(
    workspace_id=workspace_id,
    change_set_id=change_set_id,
    component_id=component_id,
)

find_response = components_api.get_component(
    workspace_id=workspace_id,
    change_set_id=change_set_id,
    component=component_name,
)

Updating an Attribute

The component update command accepts a filename as its only parameter. That file contains both the data to identify as well as the values you want the component data updated to. I added the region attribute and set it to us-east-1 below

TIP

The component get command with the -o json is a helpful way to get the state of the component data in a format that is easy to edit.

$ cat mycomponent.json
{
  "componentId": "01KBNCGCKKKHSAE23R1E2E8TMA",
  "schemaId": "01JK0QZHF0TXMJFVE1VK2175EC",
  "schemaName": "AWS::EC2::Instance",
  "resourceId": "",
  "toDelete": false,
  "canBeUpgraded": false,
  "qualified": true,
  "attributes": {
    "/si/name": "MyNodeEC2Instance",
    "/si/type": "component",
    "/domain/extra/Region": "us-east-1"
  },
  "qualifications": [],
  "actions": []
}

$ si component update -c 01KC2F3RWYRYQDZ3BRNG69FC28 mycomponent.json
✨ info    si              Loading component data from "mycomponent.json"
✨ info    si              Resolving change set: "01KC2F3RWYRYQDZ3BRNG69FC28"
✨ info    si              Fetching current component: "01KBNCGCKKKHSAE23R1E2E8TMA"
✨ info    si              Schema: "AWS::EC2::Instance" ("01JK0QZHF0TXMJFVE1VK2175EC")
✨ info    si              Component: "MyNodeEC2Instance" ("01KBNCGCKKKHSAE23R1E2E8TMA")
✨ info    si              Attributes to set or update: { "/domain/extra/Region": "us-east-1" }
✨ info    si              Updating component "01KBNCGCKKKHSAE23R1E2E8TMA"
✨ info    si              Component "01KBNCGCKKKHSAE23R1E2E8TMA" updated successfully
✨ info    si              Component "MyNodeEC2Instance" updated successfully in change set "01KC2F3RWYRYQDZ3BRNG69FC28"

> For the component MyNodeEC2Instance set the region value to us-east-1
⏺ Done! I've set the region for MyNodeEC2Instance to "us-east-1".

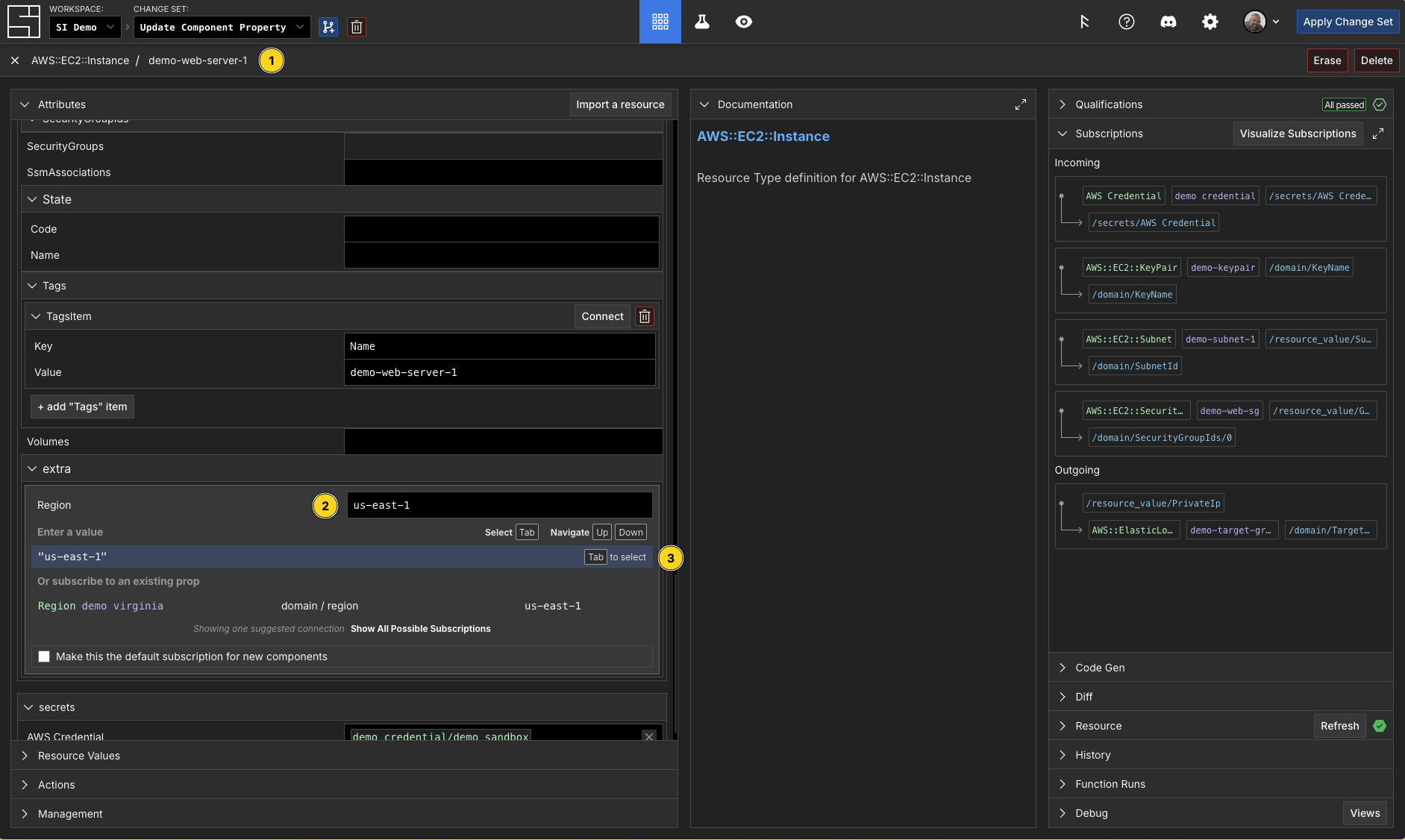

1. Navigate to the component detail page.
2. Filter and / or scroll to the attribute you wish to update
3. Type the value you want to set, hit tab (or enter)

TypeScript

const response = await componentsApi.updateComponent({
  workspaceId,
  changeSetId,
  componentId,
  updateComponentV1Request: {
    attributes: {
      "/si/name": "us-east-1",
    },
  },
});

Python

request = UpdateComponentV1Request(
  attributes={
    "/si/name": "us-east-1",
  }
)

response = components_api.update_component(
    workspace_id=workspace_id,
    change_set_id=change_set_id,
    component_id=component_id,
    update_component_v1_request=request,
)

Creating Subscriptions

The component update command accepts a filename as its only parameter. That file contains both the data to identify as well as the values you want the component data updated to. I added the region attribute and configured a subscription to the value of the region component

TIP

The component get command with the -o json is a helpful way to get the state of the component data in a format that is easy to edit.

$ cat mycomponent.json
{
  "componentId": "01KBNCGCKKKHSAE23R1E2E8TMA",
  "schemaId": "01JK0QZHF0TXMJFVE1VK2175EC",
  "schemaName": "AWS::EC2::Instance",
  "resourceId": "",
  "toDelete": false,
  "canBeUpgraded": false,
  "qualified": true,
  "attributes": {
    "/si/name": "MyNodeEC2Instance",
    "/si/type": "component",
    "/domain/extra/Region": {
      "$source": {
        "component": "01KBN59ZHQPVCXD44J1YT77S4E",
        "path": "/domain/region"
      }
    }},
  "qualifications": [],
  "actions": []
}

$ si component update -c 01KC2F3RWYRYQDZ3BRNG69FC28 mycomponent.json
✨ info    si              Loading component data from "mycomponent.json"
✨ info    si              Resolving change set: "01KC2F3RWYRYQDZ3BRNG69FC28"
✨ info    si              Fetching current component: "01KBNCGCKKKHSAE23R1E2E8TMA"
✨ info    si              Schema: "AWS::EC2::Instance" ("01JK0QZHF0TXMJFVE1VK2175EC")
✨ info    si              Component: "MyNodeEC2Instance" ("01KBNCGCKKKHSAE23R1E2E8TMA")
✨ info    si              Subscriptions to update: { "/domain/extra/Region":
                              { component: "01KBN59ZHQPVCXD44J1YT77S4E", path: "/domain/region", func: undefined } }
✨ info    si              Updating component "01KBNCGCKKKHSAE23R1E2E8TMA"
✨ info    si              Component "01KBNCGCKKKHSAE23R1E2E8TMA" updated successfully
✨ info    si              Component "MyNodeEC2Instance" updated successfully in change set "01KC2F3RWYRYQDZ3BRNG69FC28"

> Subscribe the region for MyNodeEC2Instance component to the region from Our East Region component
⏺ Done! I've successfully subscribed the region for MyNodeEC2Instance to the region from Our East Region. The /domain/extra/Region attribute of MyNodeEC2Instance is now subscribed to /domain/region from the Our East Region component,
  so the region value will automatically flow from that component.

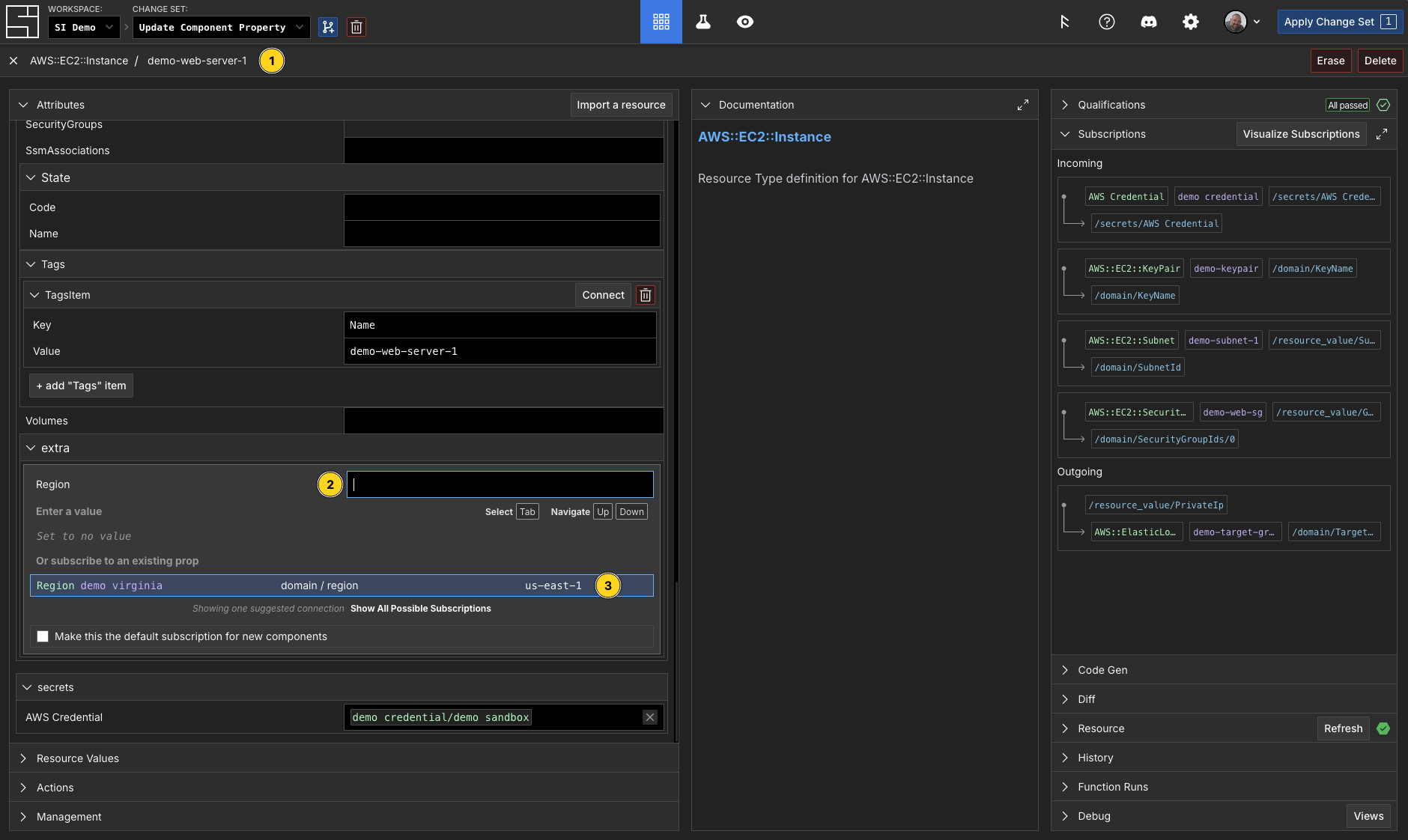

1. Navigate to the component detail page.
2. Filter and / or scroll to the attribute you wish to make a subscription
3. Find the component, path, and value you want to subscribe to with either the keyboard or mouse and select it (click, tab, or enter).

Note: typing in the attribute input box will fuzzy filter the list of subscriptions

TypeScript

const response = await componentsApi.updateComponent({
  workspaceId,
  changeSetId,
  componentId,
  updateComponentV1Request: {
    attributes: {
      "/domain/extra/Region": {
        "$source": {
          "component": "01KBN59ZHQPVCXD44J1YT77S4E",
          "path": "/domain/region",
        },
      },
    },
  },
});

Python

source = {
  "component": "01KBN59ZHQPVCXD44J1YT77S4E",
  "path": "/domain/region"
}
request = UpdateComponentV1Request(
  attributes={
    "/si/name": { "$source": source },
  }
)

response = components_api.update_component(
    workspace_id=workspace_id,
    change_set_id=change_set_id,
    component_id=component_id,
    update_component_v1_request=request,
)

Deleting a Component

TIP

To remove a piece of cloud infrastructure you will delete its corresponding component. A deleted component will remain in your Change Set until its corresponding resource has been removed by its delete action.

To delete a Component with the CLI:

$ si component delete -c 01KC22VWQQSFWN203C83Q42EVZ ANodeEC2Instance

> Delete the component ANodeEC2Instance from the Create Component change set
⏺ Successfully deleted the "ANodeEC2Instance" component from the "Create Component" change set. The component has been removed and will no longer be part of the change set when you apply it.

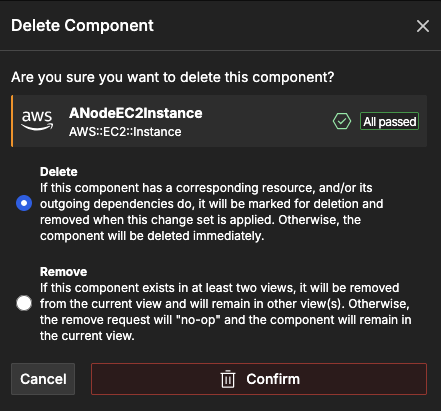

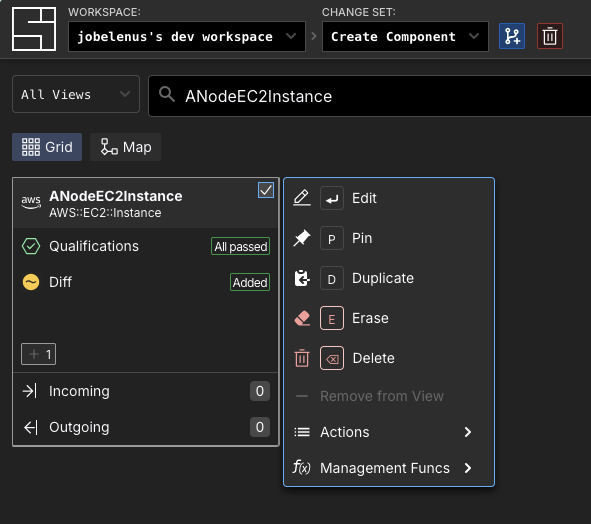

To delete a Component:

1. Find the component on the grid.
2. Right click to open the context menu.
3. Click delete.
4. Confirm your selection.

TypeScript

await componentsApi.deleteComponent({
  workspaceId,
  changeSetId,
  componentId,
});

Python

response = components_api.delete_component(
    workspace_id=workspace_id,
    change_set_id=change_set_id,
    component_id=component_id,
)

Erasing a Component

TIP

Erasing is not the same as Deleting. When you no longer want to manage a piece of cloud infrastructure in System Initiative you will erase its corresponding component. The component will no longer be present in your Change Set and the cloud infrastructure will not be modified.

To erase a Component with the CLI:

$ si component erase -c 01KC22VWQQSFWN203C83Q42EVZ ANodeEC2Instance

> Erase the component ANodeEC2Instance from the Create Component change set
⏺ Successfully erased the "ANodeEC2Instance" component from the "Create Component" change set. The component has been completely removed from System Initiative without enqueuing a delete action. This action cannot be undone within
  this change set.

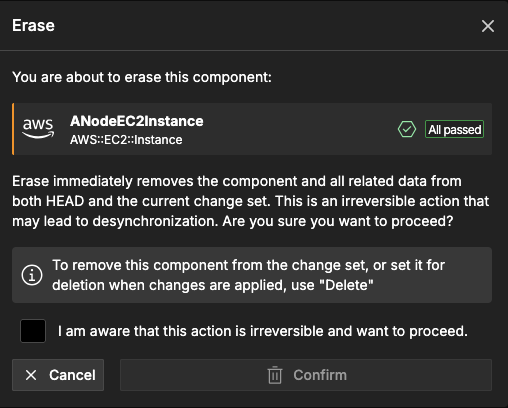

To erase a Component:

1. Find the component on the grid.
2. Right click to open the context menu.
3. Click Erase.
4. Confirm your selection.

TypeScript

await componentsApi.eraseComponent({
  workspaceId,
  changeSetId,
  componentId,
});

Python

response = components_api.erase_component(
    workspace_id=workspace_id,
    change_set_id=change_set_id,
    component_id=component_id,
)
